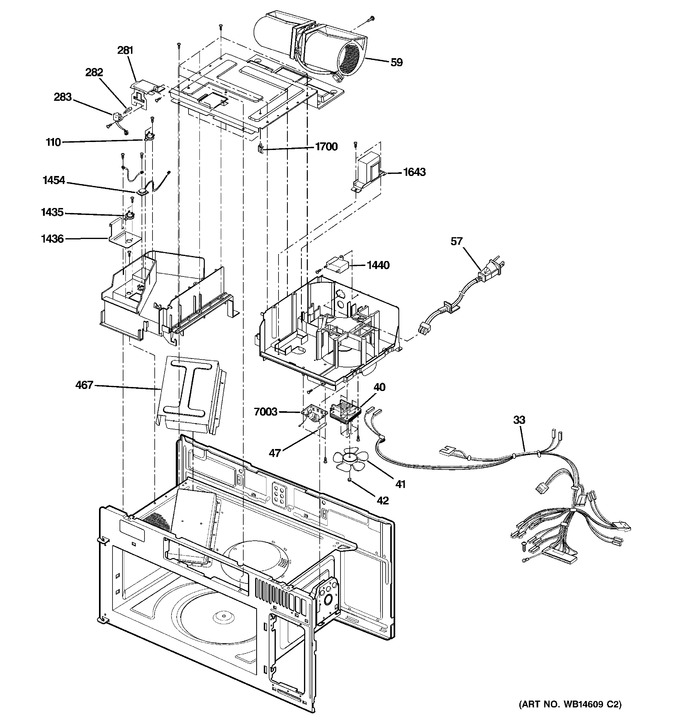

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 33 | WB18X10467 | Harness |
|
- | |||||
| 40 | WB26X10194 | Motor(circ) Fan |
|
- | |||||
| 41 | WB38X10101 | Fan |
|
- | |||||
| 42 | WB01X10375 | Nut,customized |
|
- | |||||
| 47 | WG02F06332 | Fuse (Replaces: WB27X10928) |
|
Immediately | $ 14.29 | ||||
| 57 | WB20X10053 | Power Cord |
|
- | |||||
| 59 | WB26X10100 | Motor, Vent |
|
- | |||||
| 110 | WG02F02808 | Thermostat (Replaces: WB21X10148) |
|
Immediately | $ 17.15 | ||||
| 281 | WB36X10347 | Cover,lamp |
|
- | |||||
| 282 | WB36X10176 | Lamp 12v 20w |
|
- | |||||
| 283 | WB06X10310 | Holder Asm Lamp |
|
- | |||||
| 467 | WB35X10013 | Insulator |
|
- | |||||
| 1435 | WB21X10149 | Thermostat |
|
- | |||||
| 1436 | WB06X10809 | Bracket, Thermistor |
|
- | |||||
| 1440 | WB27X10808 | Capacitor |
|
- | |||||
| 1454 | WG02F01437 | Sensor Asm (Replaces: WB27X10857) |
|
$ 113.04 | |||||
| 1643 | WB20X10021 | Transformer, Power |
|
- | |||||
| 1700 | WB02X10778 | Wire Holder |
|
- | |||||
| 7003 | WB27X11134 | Noise Filter |
|
- |
