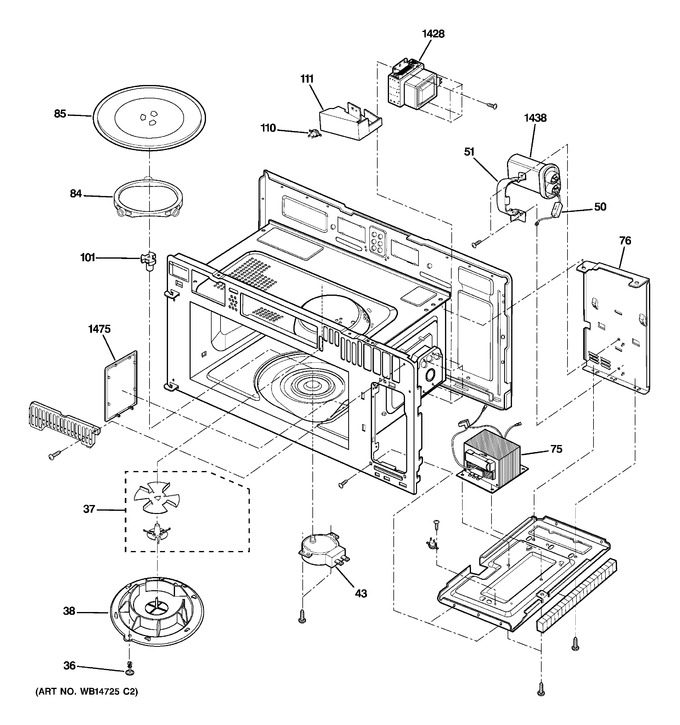

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
36	WB01X10055		Rivet Asm		Appelez-nous	-
37	WB06X10803		Cover Asm, Stirrer		Appelez-nous	-
38	WB06X10682		Cover Stirrer Fan		Appelez-nous	-
43	WB26X10226		Motor, Ac Synchronous				$ 45.18
50	WB27X10892		Diode, Cable		Appelez-nous	-
51	WB06X10804		Bracket,capacitor		Appelez-nous	-
75	WB20X10041		Transformer,high Voltage		Appelez-nous	-
76	WB39X10023		Guide,air		Appelez-nous	-
84	WB49X10210		Turntable Assembly		Appelez-nous	-
85	WB49X10212		Tray,glass		Appelez-nous	-
101	WB06X10564		Shaft,turn Table		Appelez-nous	-
110	WG02F02808		Thermostat   (Replaces: WB21X10148)			Immediately	$ 17.15
111	WB39X10024		Guide,air		Appelez-nous	-
1428	WB27X10611		Magnetron		Appelez-nous	-
1438	WG02L01893		Capacitor,high Voltage   (Replaces: WB27X11011)				$ 77.69
1475	WB06X10305		Wave Guide - Mica Cover		Appelez-nous	-
