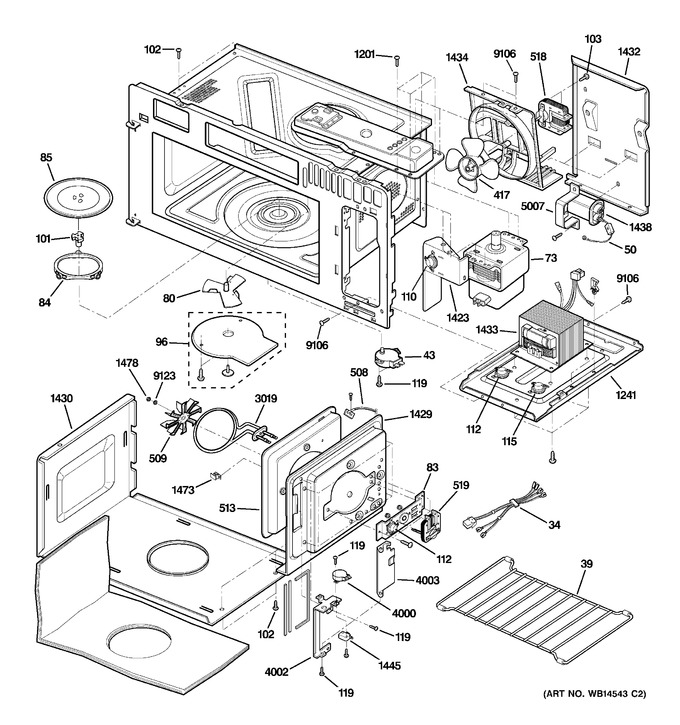

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WB18X10294 | Harness |
|
- | |||||
| 39 | WB48X10064 | Shelf |
|
$ 92.70 | |||||
| 43 | WB26X10186 | Motor(circ) Synchronous |
|
- | |||||
| 50 | WB18X10286 | Cable Asm |
|
- | |||||
| 73 | WB27X10865 | Magnetron |
|
- | |||||
| 80 | WG02F05944 | Fan Asm (Replaces: WB38X10099) |
|
$ 33.65 | |||||
| 83 | WB56X10639 | Plate Side Heater |
|
- | |||||
| 84 | WB06X10858 | Turntable Asm |
|
- | |||||
| 85 | WG02L02358 | Tray,glass (Replaces: WB49X10114) |
|
$ 109.01 | |||||
| 96 | WG02L02412 | Cover Asm, Stirrer Fan (Replaces: WB06X10787) |
|
$ 29.41 | |||||
| 101 | WG02F06263 | Shaft Turn Table (Replaces: WB06X10658) |
|
$ 24.78 | |||||
| 102 | WB1X1514 | Screw Tapping |
|
- | |||||
| 103 | WB02X10720 | Screw Tapping Truss Head |
|
- | |||||
| 110 | WG02F02808 | Thermostat (Replaces: WB21X10148) |
|
Immediately | $ 19.06 | ||||
| 112 | WB20X10048 | Thermostat |
|
- | |||||
| 115 | WB27X11034 | Thermostat(plate) |
|
- | |||||
| 119 | WB02X10728 | Screw - Hand |
|
- | |||||
| 417 | WB38X10005 | Fan Blade |
|
- | |||||
| 508 | WG02F05822 | Thermistor (Replaces: WB18X10126) |
|
$ 49.56 | |||||
| 509 | WB06X10666 | Fan |
|
- | |||||
| 513 | WB06X10656 | Chamber |
|
- | |||||
| 518 | WB26X10247 | Motor,ac Fan |
|
- | |||||
| 519 | WB26X10183 | Motor(circ) Circulation |
|
- | |||||
| 1201 | WB02X10777 | Wb02x10745 |
|
- | |||||
| 1241 | WB56X10640 | Plate Bottom |
|
- | |||||
| 1423 | WB38X10096 | Guide Air |
|
- | |||||
| 1429 | WB06X10661 | Insulator |
|
- | |||||
| 1430 | WB06X10662 | Insulator Asm |
|
- | |||||
| 1432 | WB38X10097 | Guide Air |
|
- | |||||
| 1433 | WB17X10022 | Transformer H.v. |
|
- | |||||
| 1434 | WB39X10026 | Guide,suction |
|
- | |||||
| 1438 | WB27X11031 | Capacitor H.v. |
|
- | |||||
| 1473 | WB06X10264 | Holder - Heater |
|
- | |||||
| 1478 | WB1X1520 | Nut Common |
|
- | |||||
| 3019 | WB44X10046 | Heater Sheath |
|
- | |||||
| 4000 | WB26X10248 | Motor, Ac Synchronous |
|
- | |||||
| 4002 | WB02X11235 | Bracket Damper |
|
- | |||||
| 4003 | WB02X11236 | Bracket Damper |
|
- | |||||
| 5007 | WB02X11226 | Bracket Capacitor |
|
- | |||||
| 9106 | WB1X1515 | Screw Tapping |
|
- | |||||
| 9123 | WB1X1522 | Washer Common |
|
- |
