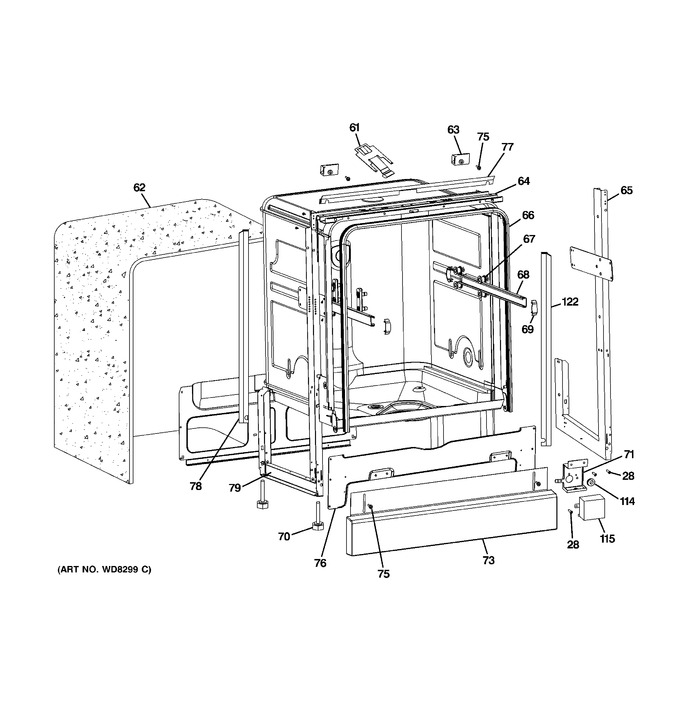

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Rack Assemblies


4 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
28	WD02X10133		Screw		Appelez-nous	-
61	WD13X10035		Door Strike		Appelez-nous	-
62	WG04F01208		Tub Insulation   (Replaces: WD01X10313)				$ 128.97
63	WD01X10329		Hook Wh		Appelez-nous	-
63	WD01X10314		Hook Bk		Appelez-nous	-
64	WD30X10027		Upper Front Brace Wh		Appelez-nous	-
64	WD30X10024		Upper Front Brace Bk		Appelez-nous	-
65	WD27X10240		Left Uprights Asm		Appelez-nous	-
66	WD08X10063		Tub Gasket		Appelez-nous	-
67	WD12X10221		Guide Rail Bracket Asm		Appelez-nous	-
68	WD30X10022		Guide Rail		Appelez-nous	-
69	WG04F04360		Cap - Guide Rail   (Replaces: WD12X10222)				$ 3.97
71	WD12X10223		Bracket - Junction Box		Appelez-nous	-
73	WD27X10215		Toe Kick Bk		Appelez-nous	-
73	WD27X10216		Toe Kick Wh		Appelez-nous	-
75	WD02X10136		Screw		Appelez-nous	-
76	WG04L03219		Lower Front Brace   (Replaces: WD01X10315)				$ 49.21
77	WD08X10064		Top Trim Bk		Appelez-nous	-
77	WD08X10069		Top Trim Wh		Appelez-nous	-
78	WD08X10065		Side Trim - Left Bk		Appelez-nous	-
78	WG04L02627		Side Trim - Left Wh   (Replaces: WD08X10070)				$ 21.32
79	WD27X10239		Right Uprights Asm		Appelez-nous	-
114	WD01X10328		Junction Guard Ring		Appelez-nous	-
115	WD12X10229		Cover - Junction Box		Appelez-nous	-
122	WD08X10071		Side Trim Right Wh		Appelez-nous	-
122	WD08X10066		Side Trim Right Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
