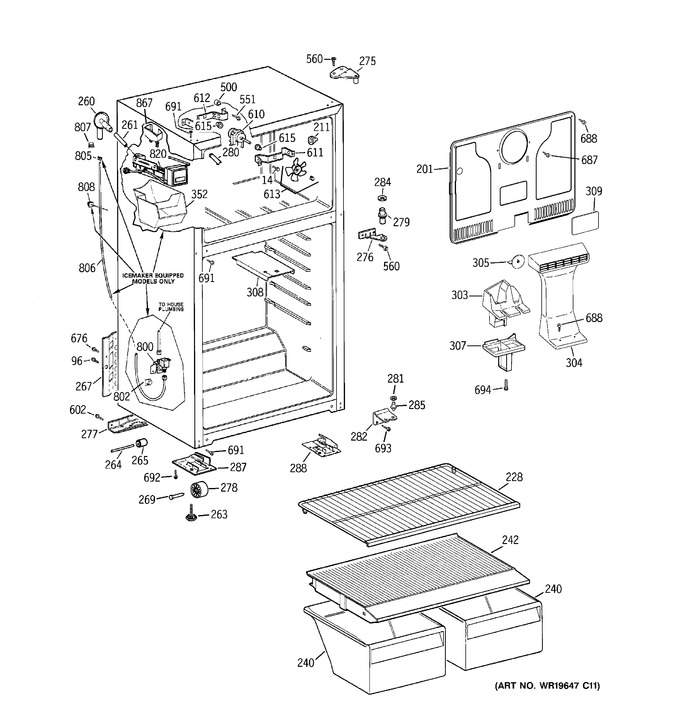

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Cabinet
3 - Unit Parts
4 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | WR01X10594 | Scr 8-36 T Hxw 3/8 S |
|
- | |||||
| 96 | WR1X2009 | Screw Asm |
|
- | |||||
| 201 | WR17X11887 | Cover Evap Asm |
|
- | |||||
| 211 | WG03A00098 | Support Shlf (Replaces: WR2X8429) |
|
$ 4.20 | |||||
| 228 | WR71X10789 | Shelf Asm Stationary |
|
- | |||||
| 240 | WG03L00766 | Pan Veg Twin Low (Replaces: WR32X1455) |
|
Immediately | $ 131.69 | ||||
| 242 | WG03L00764 | Cover Veg Pan (Replaces: WR32X10398) |
|
Immediately | $ 164.37 | ||||
| 260 | WR02X10531 | Grommet Water Fill Asm |
|
- | |||||
| 261 | WR02X10532 | Tube Water Fill |
|
- | |||||
| 263 | WG03F01630 | Glider Adj (Replaces: WR2X7877) |
|
$ 18.13 | |||||
| 264 | WG03F01631 | Axle Wheel Rear (Replaces: WR2X8214) |
|
$ 4.20 | |||||
| 265 | WG03L00759 | Wheel Mobility Rear (Replaces: WR2X8245) |
|
Immediately | $ 9.20 | ||||
| 267 | WR82X10112 | Cover Access |
|
- | |||||
| 269 | WG03L00748 | Axle Wheel Front (Replaces: WR02X12267) |
|
$ 4.20 | |||||
| 275 | WR13X10326 | Hng Top/pin Wht |
|
- | |||||
| 275 | WR13X10327 | Hng Top/pin Bq |
|
- | |||||
| 275 | WR13X10408 | Hinge Top & Pin Asm |
|
- | |||||
| 276 | WR13X10680 | Hinge Ctr & Pin Asm |
|
- | |||||
| 276 | WR13X10681 | Hinge Ctr & Pin Asm |
|
- | |||||
| 276 | WR13X10407 | Hinge Ctr & Pin Asm |
|
- | |||||
| 277 | WR17X3188 | Rail Rear |
|
- | |||||
| 278 | WG03L00758 | Wheel, Front (Replaces: WR2X8244) |
|
$ 12.71 | |||||
| 279 | WR2X8232 | Pin Hinge Ctr |
|
- | |||||
| 280 | WG03L00745 | Cap Corner Oc Wh (Replaces: WR02X10703) |
|
$ 6.09 | |||||
| 280 | WR02X10749 | Cap Corner Oc Bk |
|
- | |||||
| 280 | WR02X10700 | Cap Corner Oc Bq |
|
- | |||||
| 281 | WG03L08792 | Washer Hinge Brown (Replaces: WR01X10146) |
|
Immediately | $ 3.97 | ||||
| 282 | WR13X10899 | Hinge Bottom |
|
- | |||||
| 282 | WR13X10897 | Hinge Bottom |
|
- | |||||
| 284 | WG03A00237 | Spacer Door Fz (Replaces: WR1X1794) |
|
Immediately | $ 3.97 | ||||
| 285 | WG03L08909 | Metal Hinge Pin (Replaces: WR02X12238) |
|
$ 12.71 | |||||
| 287 | WR02X10530 | Gusset Lh |
|
- | |||||
| 288 | WR02X10529 | Gusset Rh |
|
- | |||||
| 303 | WG03L01241 | Duct Foam (Replaces: WR02X12019) |
|
$ 30.18 | |||||
| 304 | WG03F01623 | Duct Air Fz (Replaces: WR17X11891) |
|
$ 90.06 | |||||
| 305 | WR02X12018 | Actuator Air |
|
- | |||||
| 307 | WR02X11793 | Diffuser Air Ff |
|
- | |||||
| 308 | WR2X8428 | Insul Elect |
|
- | |||||
| 309 | WR02X12020 | Gasket Air Duct |
|
- | |||||
| 352 | WR32X10372 | Ice Bucket |
|
- | |||||
| 500 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 551 | WR01A01042 | Scr 8-18 Ab Rndw 5/8 Ss (Replaces: WR01X10789) |
|
$ 3.97 | |||||
| 560 | WR1X1249 | Screw |
|
- | |||||
| 602 | WR01X10592 | Scr 1/4-14 Ab Ihw 3/4 S |
|
- | |||||
| 610 | WG03F07855 | Motor Ac/dc Evap Fan (Replaces: WR60X10141) |
|
Immediately | $ 136.29 | ||||
| 611 | WR02X10516 | Brkt Evap Fan Frt |
|
- | |||||
| 612 | WG03A02567 | Bracket Evap Fan Rear (Replaces: WR21X10152) |
|
$ 19.06 | |||||
| 613 | WG03F10250 | Blade Evap Fan Asm (Replaces: WR60X10204) |
|
Immediately | $ 11.12 | ||||
| 615 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 6.99 | ||||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 |
|
- | |||||
| 687 | WR01X10589 | Scr 8-15 Ab Ihxw 1/2 S |
|
- | |||||
| 688 | WR01X10448 | Scr 8-19 Hi/lo Trp 1 S |
|
- | |||||
| 691 | WR01A01036 | Scr 12-24 .7 (Replaces: WR1X1753) |
|
$ 3.97 | |||||
| 692 | WR01X10593 | Scr 8-18 Ab Ihxw 3/4 S |
|
- | |||||
| 693 | WG03A00439 | Scr 12-24 Tt Ovt20 .900 (Replaces: WR01X10591) |
|
$ 4.20 | |||||
| 694 | WR1X1792 | Screw |
|
- | |||||
| 800 | WR57X10034 | Valve Water |
|
- | |||||
| 802 | WR01X10182 | Clip U |
|
- | |||||
| 805 | WR2X3736 | Str Relief |
|
- | |||||
| 806 | WR17X10893 | Tube Plastic |
|
- | |||||
| 807 | WR02X11437 | Clamp |
|
- | |||||
| 808 | WR2X4039 | Adhesive Clip |
|
- | |||||
| 820 | WR30X10109 | Im Asm Crescent |
|
- | |||||
| 867 | WR01L01185 | Cup Fill Im (Replaces: WR29X10021) |
|
$ 10.52 |
