10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill

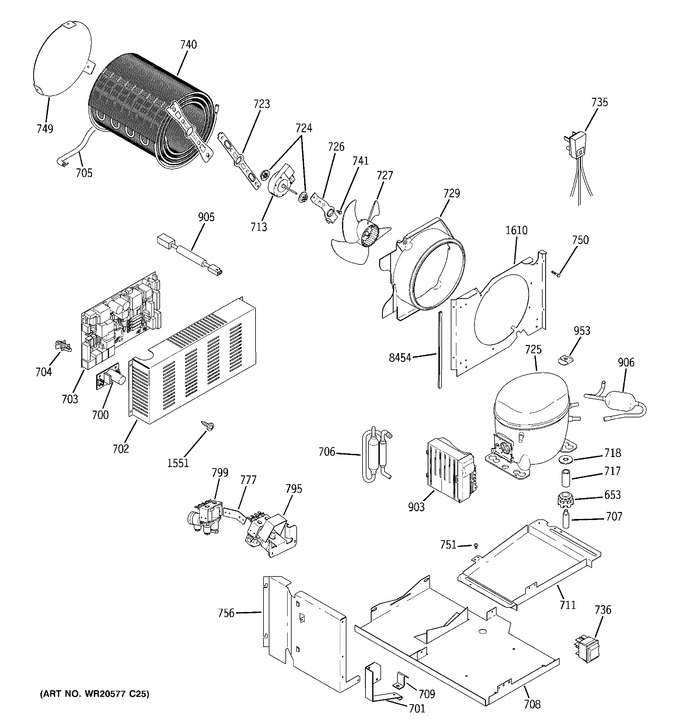

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
653	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
700	WR23X10622		Power Supply Pcb		Appelez-nous	-
701	WR02X12198		Bracket Water Valve		Appelez-nous	-
702	WG03L05118		Cover Board Main Sxs   (Replaces: WR02X12829)				$ 81.88
703	WR01F02880		Board Asm Main Control   (Replaces: WR55X11070)			Immediately	$ 296.92
704	WR01X10301		Main Board Stand Offs		Appelez-nous	-
705	WG03F03655		Cap Suction Tube Asm   (Replaces: WR86X10021)				$ 187.97
706	WR74X10125		Dryer		Appelez-nous	-
707	WR01X10458		Stud Compressor Mtg		Appelez-nous	-
708	WR17X12348		System Pan		Appelez-nous	-
709	WR02X12568		Hold Down Bracket		Appelez-nous	-
711	WR17X12484		Pan Vaporizer		Appelez-nous	-
713	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
717	WR01X10459		Flat Washer 3/8x 7/8		Appelez-nous	-
718	WR01X10305		Steel Collar		Appelez-nous	-
723	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
724	WR01A00315		Grommet Fan Motor   (Replaces: WR02X10520)				$ 3.75
725	WR87X10180		Inverter Compressor Emb		Appelez-nous	-
726	WG03F00071		Bracket Cond Fan (mtg)   (Replaces: WR02X11863)			Immediately	$ 24.30
727	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 10.36
729	WR17X11252		Shroud Condenser		Appelez-nous	-
735	WG03F00911		Power Cord   (Replaces: WR23X10300)				$ 76.87
736	WR23X10571		Master Light Switch		Appelez-nous	-
740	WR01F02892		Prod Serv Condenser   (Replaces: WR84X10022)				$ 403.54
741	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
749	WR17X10694		Baffle Cond Air		Appelez-nous	-
750	WR1X1826		#8-18 Type Ab X 3/8 Ph P		Appelez-nous	-
751	WR01X10302		Bolt 1/4-20x1.5"		Appelez-nous	-
756	WR17X12529		Baffle Lh		Appelez-nous	-
777	WR02X10370		Bracket Water Valve		Appelez-nous	-
795	WG03F00070		Bracket And Valve Asm   (Replaces: WR57X10084)				$ 150.71
799	WG03F00684		Water Valve Assy   (Replaces: WR57X10024)				$ 115.25
903	WR55X10685		Inverter Asm Comp Mount		Appelez-nous	-
905	WR23X10392		Harness Ground		Appelez-nous	-
906	WG03L02186		Accumulator   (Replaces: WR86X10038)				$ 76.77
953	WR01X10307		1/4-20 Hex Nut		Appelez-nous	-
1551	WG04A01239		#10x1 Ph Sms   (Replaces: WD2X295)				$ 3.57
1610	WR17X12350		Cond Baffle		Appelez-nous	-
8454	WR38X10190		Edge Trim		Appelez-nous	-
	WG03F03754		Damper Foam Asm, Monogram				$ 299.01
	WR01F02880		Board Asm Main Control			Immediately	$ 296.92
	WG03F00154		Compressor Repl Kit (charged)			Immediately	$ 1,005.30
	WR01F03637		Switch			Immediately	$ 15.72
	WR01L08517		Air Handler Asm Qc Kit				$ 482.37
	WG03F00291		Funnel Blk				$ 57.26
	WG03F00341		Housing				$ 18.59
	WG02F11798		Led Transformer   (Replaces: WG03F00649)				$ 148.78
	WG03F01824		Display Touch Disp				$ 395.76
