SELECT A DIAGRAM

1 - Freezer Doors


2 - Fresh Food Doors


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts


8 - Machine Compartment

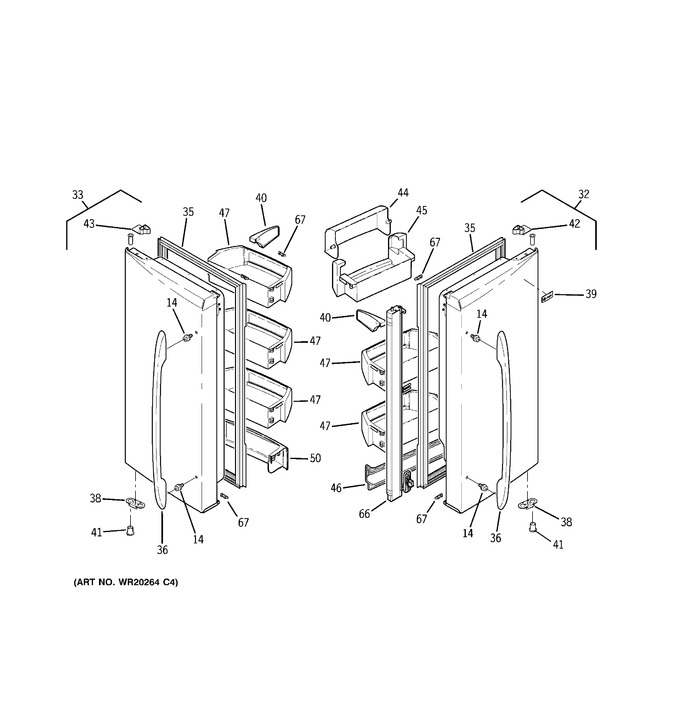

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	WR01A00257		Fastener Handle Ss   (Replaces: WR01X10680)				$ 15.78
32	WR78X12130		Door Foam Asm Fr Bw Rh		Appelez-nous	-
33	WR78X12125		Door Foam Asm Fr Bw Lh		Appelez-nous	-
35	WR01L02134		Gasket French With Flap   (Replaces: WR14X10305)			Immediately	$ 98.12
36	WR12X10976		Handle Asm Ff Fin		Appelez-nous	-
38	WR02X12697		Stop Door Bm		Appelez-nous	-
39	WR01L02772		Lens Name Plate   (Replaces: WR04X10161)				$ 12.31
40	WR01L04421		Snugger Module   (Replaces: WR02X10582)			Immediately	$ 31.76
41	WR02X12698		Thimble Door Ff		Appelez-nous	-
42	WR02X12699		Cam Ff Closure Rh		Appelez-nous	-
43	WR02X12700		Cam Ff Closure Lh		Appelez-nous	-
44	WR01L01271		Door Dairy Clear   (Replaces: WR02X12364)				$ 71.23
45	WR01L00665		Compartment Dairy   (Replaces: WR71X10871)				$ 25.11
46	WR17X12271		Beverage Rack		Appelez-nous	-
47	WR71X10875		Module Shelf Asm Ff		Appelez-nous	-
50	WR01L02892		Module Shelf Ff Fixed   (Replaces: WR17X12830)				$ 63.60
66	WR17X12759		Articulation Mullion Asm		Appelez-nous	-
67	WR02X13427		Bumper French Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
