Diagram # Part Number Description Series Availability Ships Price Add to Cart
1000 WR79X10052 Clad Left Side Appelez-nous -
1001 WR01X10935 Cage Nut Appelez-nous -
1002 WR01X10933 Screw 10n100txp0z Appelez-nous -
1003 WR01X10934 Scr 8-18 Ab Hw 1/2 S Appelez-nous -
1004 WR01X10065 Scr 8-18 Ba Por 5/8 Ss Appelez-nous -
1010 WR79X10051 Clad Right Side Appelez-nous -
1020 WR79X10050 Panel Top Appelez-nous -
WG04F11911 Valve   (Replaces: WG03F00685) In-Stock Immediately $ 111.26

WR01L01455 Door Foam Asm Flat Lh, Monogra Special Order $ 477.24

WR01L02559 Icemaker Asm   (Replaces: WR01L02566) In-Stock Immediately $ 122.81

WR01L04209 Shield Light Ff Special Order $ 32.87

WR01F00252 Board Asm Temp Control In-Stock Immediately $ 167.68

WR01F01730 Sensor Temp Ff In-Stock Immediately $ 14.66


    View Diagram in Separate Window     Print Icon   Print Part List

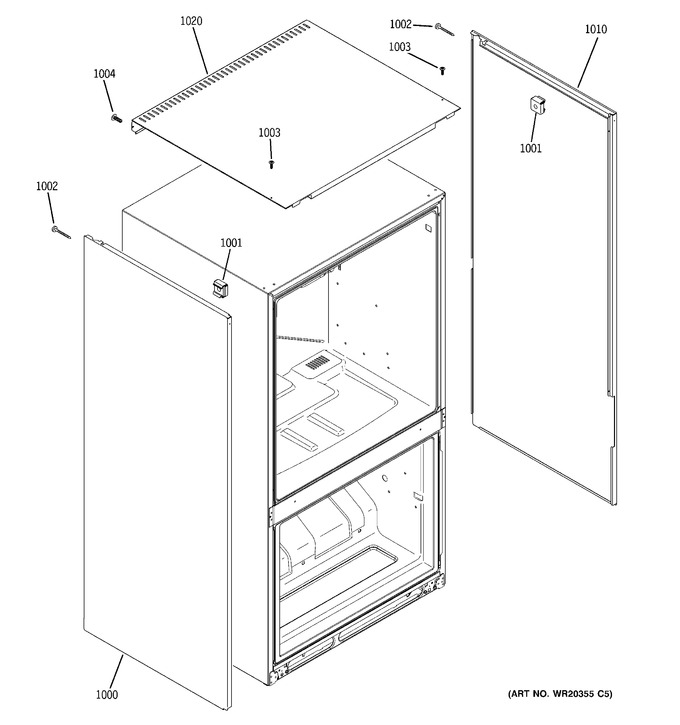

Diagram for ZFGP21HZASS
