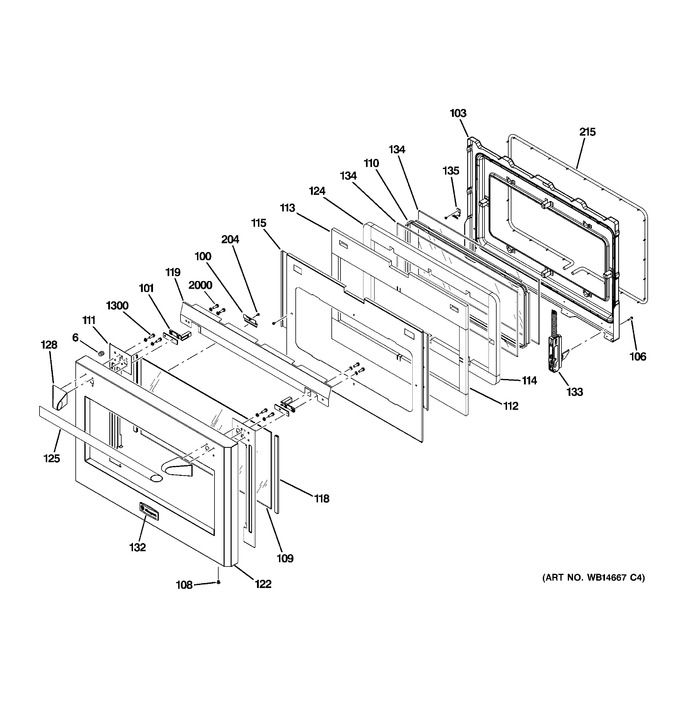

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WS01F02074		Set Screw   (Replaces: WR02X11754)				$ 15.44
100	WB02K10218		Bracket Glass		Appelez-nous	-
101	WB02K10219		Cap End Extension		Appelez-nous	-
103	WS01L00653		Liner Oven Door Asm   (Replaces: WB55K10062)				$ 85.42
106	WB01K10089		Scr 10-32 Tr T 7/8 S		Appelez-nous	-
108	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
109	WB57K10135		Glass Door 27"		Appelez-nous	-
110	WB34K10109		Spacer Window		Appelez-nous	-
111	WB07K10379		Support Outer Glass Rt		Appelez-nous	-
111	WB07K10380		Support Outer Glass Lf		Appelez-nous	-
112	WB35K10174		Ft Insul Door Side		Appelez-nous	-
113	WB35K10175		Ft Insul Door Top 27"		Appelez-nous	-
113	WB35K10178		Ft Insul Door Btm 27"		Appelez-nous	-
114	WB35K10186		Rr Insul Door Btm 27"		Appelez-nous	-
114	WB35K10183		Rr Insul Door Top 27"		Appelez-nous	-
115	WB55K10059		Guard Insulation		Appelez-nous	-
118	WB04K10028		Pad Door		Appelez-nous	-
119	WB02K10260		Heat Deflector 27"		Appelez-nous	-
122	WB56K10067		Panel Oven Door		Appelez-nous	-
124	WB35K10181		Rr Insul Door Side		Appelez-nous	-
125	WB15K10091		Bar Handle		Appelez-nous	-
128	WS01L06952		Cap End   (Replaces: WR02X12344)				$ 111.02
132	WS01A00367		Monogram Badge   (Replaces: WB02K10295)				$ 12.40
133	WB10K10017		Hinge Door Rt(36)		Appelez-nous	-
133	WS01L00234		Hinge Door Lt(36)   (Replaces: WB10K10018)			Immediately	$ 67.89
134	WB57K10138		Glass Door		Appelez-nous	-
135	WB02K10222		Clip Window		Appelez-nous	-
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 15.88
204	WB1K84		Screw		Appelez-nous	-
215	WB02K10221		Gasket Door 27"		Appelez-nous	-
1300	WB01K10088		Scr 1/4-20 Tt Hxws 3/4 S		Appelez-nous	-
2000	WB01K10100		Scr 10-32 Trp 1/2		Appelez-nous	-
