SELECT A DIAGRAM

10 - Door Lock


11 - Large Convection Fan


1 - Gas & Burner Parts


2 - Small Convection Fan


3 - Grill Assembly


4 - Control Panel


5 - Cooktop


6 - Body Parts


7 - Oven Cavity Parts


8 - Large Door Assembly


9 - Small Door Assembly

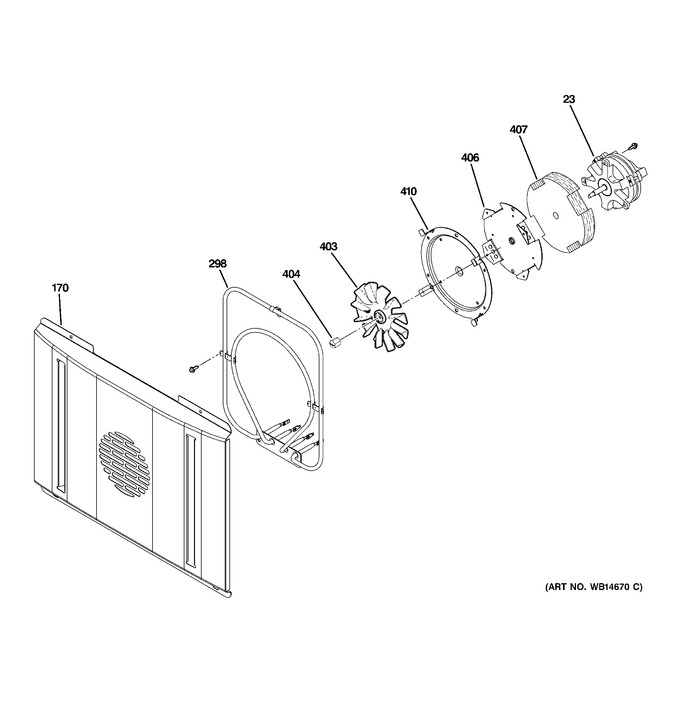

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	WG02F02831		Motor Psc Conv   (Replaces: WB26T10037)				$ 169.32
170	WB02K10199		Cover Fan 27"		Appelez-nous	-
298	WB44T10058		Element Convection		Appelez-nous	-
403	WG02F00731		Hub Blade Asm   (Replaces: WB02T10289)			Immediately	$ 36.53
404	WS01A01105		Nut   (Replaces: WB02T10017)			Immediately	$ 9.50
406	WB02T10293		Bracket Convx Mtr Mtg		Appelez-nous	-
407	WB35K10128		Insulation		Appelez-nous	-
410	WB02T10310		Plate Convection		Appelez-nous	-
	WS01F01582		Switch Sail Asm				$ 148.63
	WS01L01957		Relay Board Asm				$ 217.09
	WS01L01956		Relay Board Asm Rt			Immediately	$ 610.79

    View Diagram in Separate Window       Print Part List
