1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop


4 - Body Parts


5 - Oven Cavity Parts


6 - Door Assembly


7 - Door Lock


8 - Convection Fan


9 - Grill Assembly

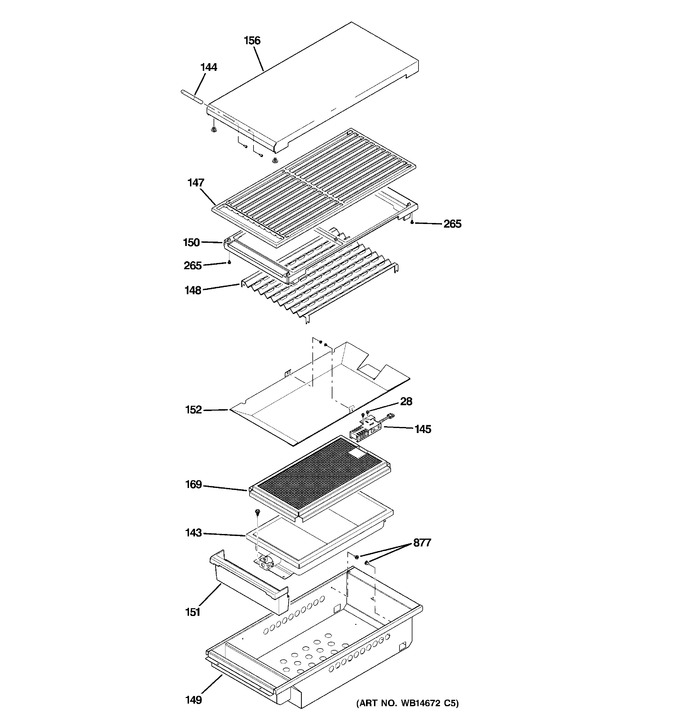

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
143	WB28K10505		Burner Ir		Appelez-nous	-
144	WB15K10088		Handle Cover		Appelez-nous	-
145	WS01F01204		Igniter Glowbar   (Replaces: WB13K10030)			Immediately	$ 132.75
147	WB32K10040		Grate Grill		Appelez-nous	-
148	WB32K10041		Baffle Grill		Appelez-nous	-
149	WB32K10039		Grill Body Weld		Appelez-nous	-
150	WB07K10296		Frame Grill Grate Asm		Appelez-nous	-
151	WB49K10014		Trough Grease Asm		Appelez-nous	-
152	WB34K10111		Reflector Asm		Appelez-nous	-
156	WB07K10300		Cover		Appelez-nous	-
169	WB31K10226		Frame Mesh Asm		Appelez-nous	-
265	WB02K10231		Foot Grate Grill		Appelez-nous	-
877	WB01T10048		Screw 10-16 Shldr Type A		Appelez-nous	-
	WG02F00438		Element Convection Monogram				$ 136.29
	WS01F02431		Oven Sensor   (Replaces: WG02F04474)			Immediately	$ 30.20
	WS01L03759		Frame Grate Asm   (Replaces: WG02F04645)				$ 288.39
	WS01F01183		Element Bake Hidden, Monogram				$ 650.45
	WS01F01298		Encoder Asm, Monogram			Immediately	$ 576.69
	WS01F02023		Control Display Module				$ 224.18
	WS01L00223		Charniere, Porte D., Monogram				$ 72.81
	WS01L00234		Charnere, Porte G., Monogram			Immediately	$ 67.89
	WS01L00934		Cover				$ 102.78
	WS01L05020		Control Panel & Rail Asm				$ 337.00
	WG02L07014		Grate   (Replaces: WS01L05128)			Immediately	$ 215.21
