SELECT A DIAGRAM

1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop


4 - Body Parts


5 - Oven Cavity Parts


6 - Door Assembly


7 - Door Lock


8 - Convection Fan


9 - Griddle Assembly

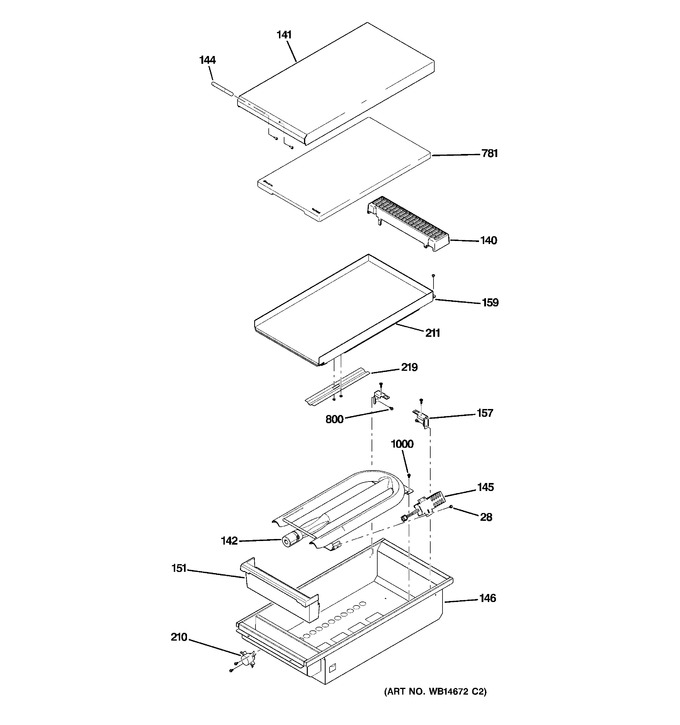

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
140	WB07K10294		Vent Griddle		Appelez-nous	-
141	WB07K10301		Cover		Appelez-nous	-
142	WB28K10504		Burner Griddle		Appelez-nous	-
144	WB15K10088		Handle Cover		Appelez-nous	-
145	WS01F07248		Igniter Glowbar Grdle   (Replaces: WB13K10020)			Immediately	$ 108.10
146	WB49K10013		Griddle Body Weld		Appelez-nous	-
151	WB49K10014		Trough Grease Asm		Appelez-nous	-
157	WB02K10208		Bracket Griddle		Appelez-nous	-
159	WB32K10042		Plate Griddle Weld Asm		Appelez-nous	-
211	WB02K10209		Bracket Support		Appelez-nous	-
219	WB49K10015		Shield Thermostat Bulb		Appelez-nous	-
781	WS01A00006		Butcher Block (griddle)   (Replaces: WB31K10223)				$ 126.55
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1000	WB01K10086		Scr 8-18 Ab Trp 3/8 Ss		Appelez-nous	-
	WS01L00515		Cavitﾃ#, Tﾃ#le				$ 86.33
	WS01F07248		Allﾃ#me-gaz   (Replaces: WS01F01196)			Immediately	$ 108.10
	WS01F01661		Thermostat, Monogram				$ 162.13
	WS01F02656		Thermostat, Monogram			Immediately	$ 156.86
	WG02L07014		Grille   (Replaces: WS01L05128)			Immediately	$ 215.21
	WG02F00772		Brﾃ#leur				$ 57.91

    View Diagram in Separate Window       Print Part List
