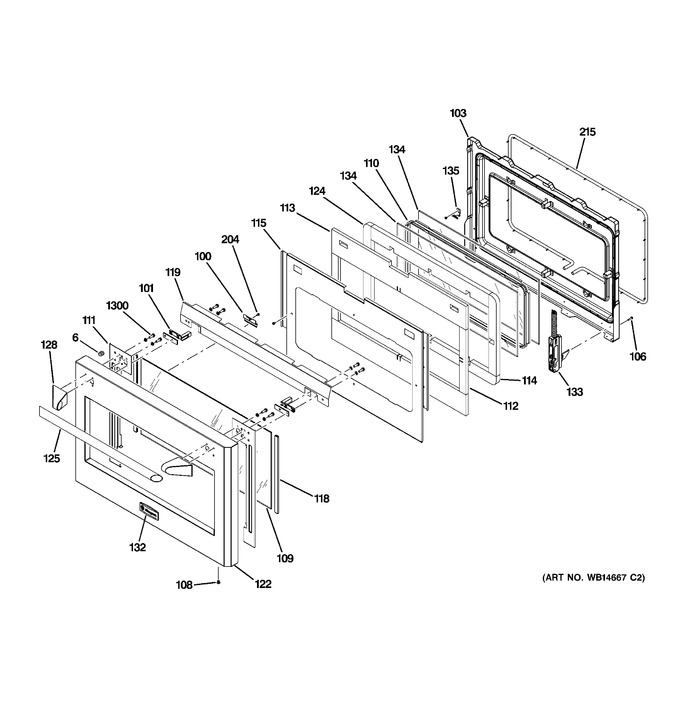

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | WS01F02074 | Set Screw (Replaces: WR02X11754) |
|
$ 15.44 | |||||
| 100 | WB02K10218 | Bracket Glass |
|
- | |||||
| 101 | WB02K10219 | Cap End Extension |
|
- | |||||
| 103 | WS01L00653 | Liner Oven Door Asm (Replaces: WB55K10062) |
|
$ 85.42 | |||||
| 106 | WB01K10089 | Scr 10-32 Tr T 7/8 S |
|
- | |||||
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 109 | WB57K10135 | Glass Door 27" |
|
- | |||||
| 110 | WB34K10109 | Spacer Window |
|
- | |||||
| 111 | WB07K10304 | Support Outer Glass Rt |
|
- | |||||
| 111 | WB07K10305 | Support Outer Glass Lf |
|
- | |||||
| 112 | WB35K10129 | Ft Insul Door Side |
|
- | |||||
| 112 | WB35K10175 | Ft Insul Door Top 27" |
|
- | |||||
| 112 | WB35K10178 | Ft Insul Door Btm 27" |
|
- | |||||
| 113 | WB35K10130 | Ft Insul Door Top 27" |
|
- | |||||
| 113 | WB35K10131 | Ft Insul Door Btm 27" |
|
- | |||||
| 114 | WB35K10134 | Rr Insul Door Btm 27" |
|
- | |||||
| 114 | WB35K10183 | Rr Insul Door Top 27" |
|
- | |||||
| 114 | WB35K10186 | Rr Insul Door Btm 27" |
|
- | |||||
| 114 | WB35K10133 | Rr Insul Door Top 27" |
|
- | |||||
| 115 | WB55K10059 | Guard Insulation |
|
- | |||||
| 118 | WB04K10028 | Pad Door |
|
- | |||||
| 119 | WB02K10260 | Heat Deflector 27" |
|
- | |||||
| 122 | WB56K10067 | Panel Oven Door |
|
- | |||||
| 124 | WB35K10132 | Rr Insul Door Side |
|
- | |||||
| 124 | WB35K10181 | Rr Insul Door Side |
|
- | |||||
| 125 | WB15K10091 | Bar Handle |
|
- | |||||
| 128 | WS01L06952 | Cap End (Replaces: WR02X12344) |
|
$ 111.02 | |||||
| 132 | WB02K10191 | Badge Monogram Large |
|
- | |||||
| 133 | WB10K10017 | Hinge Door Rt(36) |
|
- | |||||
| 133 | WS01L00234 | Hinge Door Lt(36) (Replaces: WB10K10018) |
|
Immediately | $ 67.89 | ||||
| 134 | WB57K10138 | Glass Door |
|
- | |||||
| 135 | WB02K10222 | Clip Window |
|
- | |||||
| 204 | WB1K84 | Screw |
|
- | |||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 15.88 | |||||
| 215 | WB02K10221 | Gasket Door 27" |
|
- | |||||
| 1300 | WB01K10088 | Scr 1/4-20 Tt Hxws 3/4 S |
|
- |
