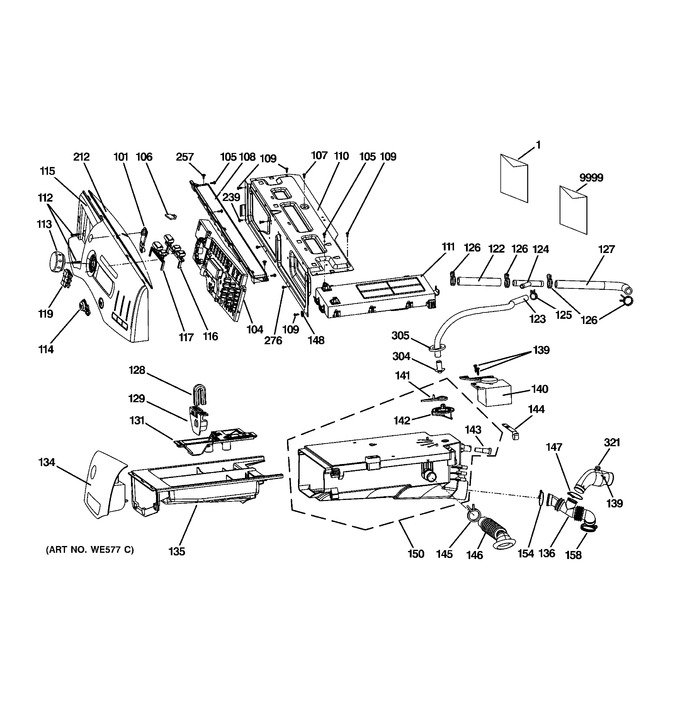

1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-30623 | Mini Manual |
|
- | |||||
| 1 | 49-90390-1 | Use & Care Manual |
|
- | |||||
| 1 | 49-90390 | User_manual |
|
- | |||||
| 101 | WH01X10565 | Power Button |
|
- | |||||
| 104 | WG04F02329 | Control Board Asm (Replaces: WH12X10485) |
|
$ 289.44 | |||||
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 106 | WH01X10436 | Model Select Plug W/bulk |
|
- | |||||
| 107 | WH02X10183 | Screw St4*13 |
|
- | |||||
| 108 | WH16X10138 | Control Rear Cover |
|
- | |||||
| 109 | WH02X10184 | Screw_st4.2 X 13 |
|
- | |||||
| 110 | WH46X10240 | Front Bracket Top |
|
- | |||||
| 111 | WH12X10484 | Power Board Asm |
|
- | |||||
| 112 | WH02X10185 | Screw_st4*25 |
|
- | |||||
| 113 | WH11X10059 | Select Cycle Knob Asm |
|
- | |||||
| 114 | WH01X10570 | Start Button |
|
- | |||||
| 115 | WH42X10863 | Control Panel Asm Ww |
|
- | |||||
| 115 | WH42X10861 | Control Panel Asm Mv |
|
- | |||||
| 115 | WH42X10860 | Control Panel Asm Ms |
|
- | |||||
| 115 | WH42X10859 | Control Panel Asm Bb |
|
- | |||||
| 115 | WH42X10862 | Control Panel Asm Mg |
|
- | |||||
| 116 | WH01X10557 | Delay Button |
|
- | |||||
| 117 | WH01X10579 | Smart Button |
|
- | |||||
| 119 | WH01X10564 | My Cycle Button |
|
- | |||||
| 122 | WH41X10108 | Inlet_water_hose_1 |
|
- | |||||
| 123 | WH41X10109 | Spray_hose |
|
- | |||||
| 124 | WH41X10110 | 3_way_pipe |
|
- | |||||
| 125 | WH01X10243 | 3_way_pipe_clamp |
|
- | |||||
| 126 | WH01X10244 | 3_way_pipe_clamp |
|
- | |||||
| 127 | WH41X10111 | Inlet_water_hose |
|
- | |||||
| 128 | WH41X10179 | Siphon Pipe |
|
- | |||||
| 129 | WH41X10180 | Liquid Detergent Insert |
|
- | |||||
| 131 | WH41X10181 | Softener Bleach Cover |
|
- | |||||
| 134 | WH41X10255 | Dispenser Dwr Front Ms |
|
- | |||||
| 134 | WH41X10254 | Dispenser Dwr Front Mv |
|
- | |||||
| 134 | WH41X10253 | Dispenser Dwr Front Mg |
|
- | |||||
| 134 | WH41X10256 | Dispenser Dwr Front Bb |
|
- | |||||
| 134 | WH41X10252 | Dispenser Dwr Front Ww |
|
- | |||||
| 135 | WH41X10185 | Drawer Dispenser |
|
- | |||||
| 136 | WH41X10257 | Water Inlet Pipe |
|
- | |||||
| 139 | WH02X10186 | Screw St 4*20 |
|
- | |||||
| 140 | WG02F04592 | Diverter (Replaces: WH43X10031) |
|
Immediately | $ 184.41 | ||||
| 141 | WH01X10247 | Diverter_indicator |
|
- | |||||
| 142 | WH01X10376 | Diverter Lever Plate |
|
- | |||||
| 143 | WH41X10121 | Dispenser_inlet |
|
- | |||||
| 144 | WH01X10249 | Dispenser_clamp |
|
- | |||||
| 145 | WH01X10250 | Dispenser_vent_hose_clam |
|
- | |||||
| 146 | WG04F00286 | Dispenser_vent_hose (Replaces: WH41X10122) |
|
$ 10.32 | |||||
| 147 | WH02X10341 | Water Inlet Pipe Clamp |
|
- | |||||
| 148 | WH01X10555 | Control Panel Pin |
|
- | |||||
| 150 | WH41X10204 | Main Box Diverter Asm |
|
- | |||||
| 154 | WH01X10377 | Clamp - Water Inlet Pipe |
|
- | |||||
| 158 | WH01X10379 | Clamp - Water Inlet Pipe |
|
- | |||||
| 212 | WH01X10558 | Escutcheon Top Sleeve Ww |
|
- | |||||
| 212 | WH01X10571 | Escutcheon Top Sleeve Mg |
|
- | |||||
| 212 | WH01X10572 | Escutcheon Top Sleeve Mv |
|
- | |||||
| 212 | WH01X10573 | Escutcheon Top Sleeve Ms |
|
- | |||||
| 212 | WH01X10574 | Escutcheon Top Sleeve Bb |
|
- | |||||
| 239 | WH02X10197 | Screw_st4.4*9.5 |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 276 | WH02X10203 | Screw St4.2*11 |
|
- | |||||
| 304 | WG04L00219 | Gasket_nozzle (Replaces: WH08X10021) |
|
$ 5.36 | |||||
| 305 | WG04L00220 | Gasket_nozzle_washer (Replaces: WH02X10206) |
|
$ 4.31 | |||||
| 321 | WH41X10249 | Hose-vent |
|
- | |||||
| 9999 | WE25X10028 | Kit - Stacking Wsh/dry |
|
- | |||||
| WG04L01686 | Front Panel Mv |
|
$ 450.43 | ||||||
| WG04F00286 | Boyau D''ﾃ#vent Du Distributeur |
|
$ 10.32 | ||||||
| WG04F00343 | Drawer Dispenser |
|
$ 116.07 | ||||||
| WG04F00991 | Couvercle |
|
$ 25.41 | ||||||
| WG04F01617 | Cuve Avant |
|
$ 199.62 | ||||||
| WG04F02290 | Rﾃ#gistre |
|
$ 88.02 | ||||||
| WG04F02295 | Courroie |
|
$ 171.70 | ||||||
| WG04F12336 | Pompe (Replaces: WG04F02348) |
|
Immediately | $ 146.24 | |||||
| WG04F02372 | Cuve Arr. Asm. |
|
$ 729.60 | ||||||
| WG04F05298 | Devant Du Distributeur |
|
$ 91.50 | ||||||
| WG04L00177 | Door Lock |
|
Immediately | $ 253.22 | |||||
| WG04L01217 | Gasket |
|
$ 319.65 | ||||||
| WG04L01219 | Glass - Door |
|
$ 213.82 | ||||||
| WG04L01222 | Hinge |
|
Immediately | $ 107.31 | |||||
| WG04L01223 | Hinge Cover |
|
$ 21.85 | ||||||
| WG04L01603 | Door Cover Asm |
|
$ 92.72 | ||||||
| WG04L01604 | Door Frame - Outer Asm |
|
$ 466.81 | ||||||
| WG04L02781 | Panier Asm. |
|
$ 614.32 | ||||||
| WG04A00752 | Ensemble, Poulie D''entrainement |
|
$ 189.48 |
