SELECT A DIAGRAM

1 - Door Parts


2 - Control Parts


3 - Oven Cavity Parts


4 - Latch Board Parts


5 - Interior Parts (1)


6 - Interior Parts (2)


7 - Installation Parts

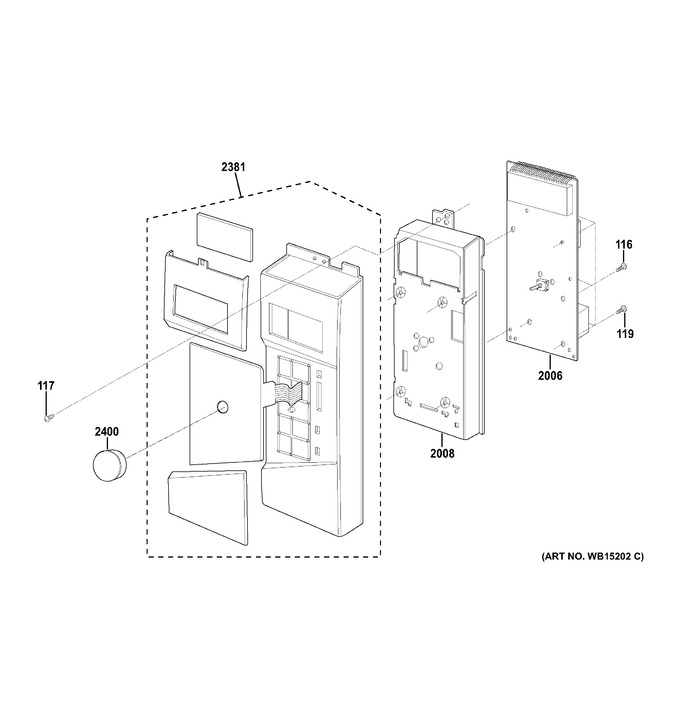

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
116	WB01X10130		Screw - Fuse		Appelez-nous	-
117	WB01X10134		Screw Tapping Pan Head		Appelez-nous	-
119	WB02X10728		Screw - Hand		Appelez-nous	-
2006	WB27X10866		Pwb(pcb) Asm Sub		Appelez-nous	-
2008	WB07X10930		Bracket Control Panel		Appelez-nous	-
2381	WB07X11345		Control Panel,ss		Appelez-nous	-
2400	WB03X10131		Knob Black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
