View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

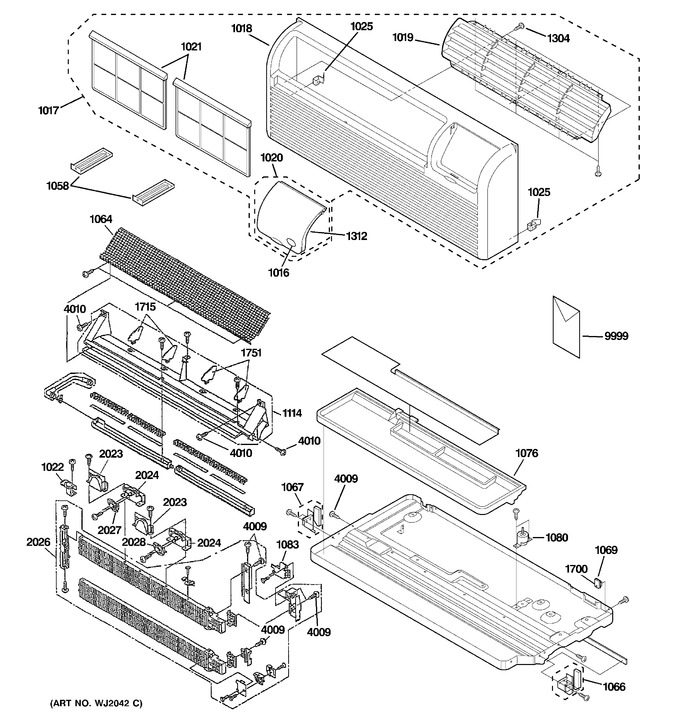

1 - Grille, Heater & Base Pan Parts
2 - Control Parts
3 - Motor & Chassis Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1016 | WJ07X10246 | Badge |
|
- | |||||
| 1017 | WP71X10029 | Front Panel Asm |
|
- | |||||
| 1018 | WP71X10030 | Front Panel |
|
- | |||||
| 1019 | WP71X10012 | Louver Asm |
|
- | |||||
| 1020 | WP71X10033 | Control Cover W/logo |
|
- | |||||
| 1021 | WP85X10008 | Air Filter |
|
Immediately | $ 36.05 | ||||
| 1022 | WP03X10017 | Holder Ang L Top |
|
- | |||||
| 1025 | WP02X10001 | Spring |
|
- | |||||
| 1058 | WP65X10013 | Brace |
|
- | |||||
| 1064 | WP56X10004 | Wire Netting |
|
- | |||||
| 1066 | WP03X10012 | Cab. Angle Rh |
|
- | |||||
| 1067 | WP03X10013 | Cab. Angle Lh |
|
- | |||||
| 1069 | WP01X10036 | Supporter |
|
- | |||||
| 1076 | WP89X10023 | Drain Tray |
|
- | |||||
| 1083 | WP03X10021 | Terminal Box Cover |
|
- | |||||
| 1114 | WP71X10032 | Louver Asm |
|
- | |||||
| 1304 | WP01X10026 | Tap Tight Screw |
|
- | |||||
| 1312 | WP71X10028 | Control Cover Asm |
|
- | |||||
| 1700 | WP01X10007 | Thermo Cushion |
|
- | |||||
| 1751 | WP71X10031 | Louver |
|
- | |||||
| 2023 | WP01X10059 | Protector Cover |
|
- | |||||
| 2024 | WP03X10030 | Protector Holder |
|
- | |||||
| 2026 | WJ27X10134 | Heater |
|
- | |||||
| 2027 | WP27X10066 | Thermostat |
|
- | |||||
| 2028 | WP27X10067 | Protector F |
|
- | |||||
| 4009 | WP01X10021 | Special Screw |
|
- | |||||
| 4010 | WJ01X10392 | Special Screw |
|
- | |||||
| 9999 | 31-61548-2 | Mini Manual |
|
- | |||||
| 9999 | 49-7612-2 | Use & Care/ I I Manual |
|
- |
