Diagram for 1 - Grille, Heater & Base Pan Parts
1 - Grille, Heater & Base Pan Parts

Diagram for 2 - Control Parts
2 - Control Parts

Diagram for 3 - Motor & Chassis Parts
3 - Motor & Chassis Parts

Diagram for 4 - Unit Parts
4 - Unit Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1073 WP01X10038 Cover Appelez-nous -
2010 WP29X10048 Pwb Main Asm Appelez-nous -
2010 WP29X10055 Pwb Main Asm Appelez-nous -
2010 WP29X10022 Pwb Asm Appelez-nous -
2011 WP03X10031 Capacitor Clamp Appelez-nous -
2012 WP03X10022 Spacer Appelez-nous -
2014 WP29X10014 Terminal Board Appelez-nous -
2016 WP03X10026 Connector Appelez-nous -
2016 WP03X10024 Connector Appelez-nous -
2020 WP07X10013 Control Base Asm Appelez-nous -
2021 WP27X10069 Transformer Appelez-nous -
2021 WP27X10068 Transformer Appelez-nous -
2025 WP03X10029 Wire Holder Appelez-nous -
2030 WP07X10008 Control Sheet Appelez-nous -
2060 WP01X10037 Cover Appelez-nous -
2070 WP29X10021 Drive Pwb Special Order $ 655.41

2070 WP29X10019 Drive Pwb-k Appelez-nous -
2127 WJ20X10159 Fan Mtr Capacitor Appelez-nous -
2127 WJ20X10116 Fan Mtr Capacitor Appelez-nous -
2128 WP20X10026 Fan Motor Capacitor Appelez-nous -
2128 WP20X10022 Fan Mtr Capacitor O.d. Appelez-nous -
2200 WJ20X10132 Running Capacitor Special Order $ 81.37

2701 WP23X10003 Fuse (250v,4a) Appelez-nous -
2701 WP23X10032 Fuse Appelez-nous -
2702 WP23X10026 Fuse Appelez-nous -
2716 WP28X10019 Varistor Appelez-nous -
2716 WP28X10021 Varistor Appelez-nous -
2740 WP23X10028 Fuse Appelez-nous -
2740 WP23X10031 Fuse Appelez-nous -
4009 WP01X10021 Special Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

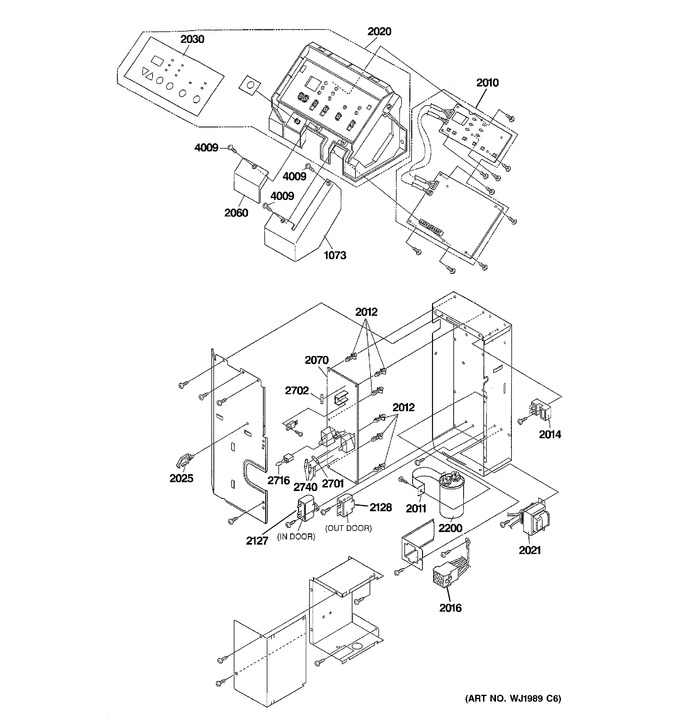

Diagram for AZ41E12EAPW1
