SELECT A DIAGRAM
1 - Cabinet & Components

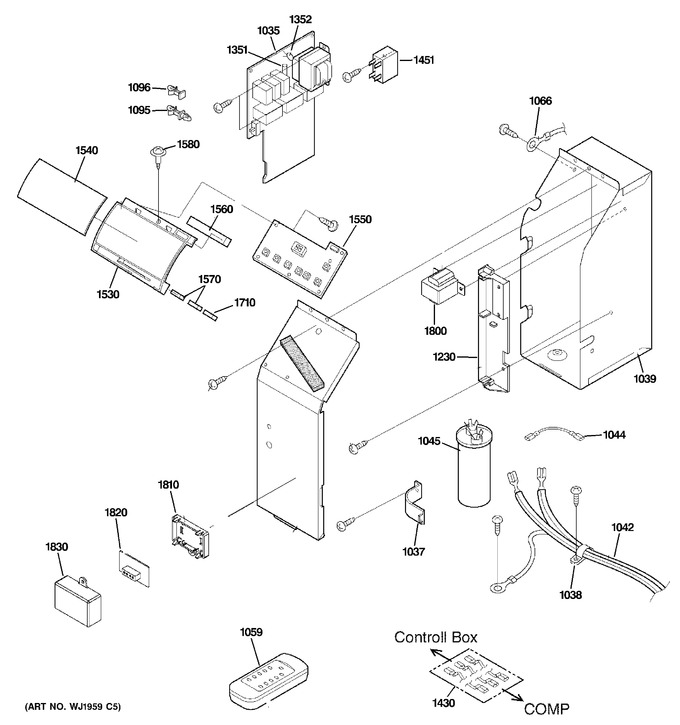

2 - Control Parts
3 - Sealed System & Components
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1035 | WJ26X10353 | Control Board Unit |
|
- | |||||
| 1037 | WJ03X10037 | Clamp Holding |
|
- | |||||
| 1038 | WJ03X10001 | Clamp |
|
- | |||||
| 1039 | WJ76X10309 | Control Box |
|
- | |||||
| 1042 | WJ35X10146 | Power Cord |
|
- | |||||
| 1044 | WJ36X10021 | Lead Wire |
|
- | |||||
| 1045 | WJ20X10139 | Run Capacitor |
|
- | |||||
| 1045 | WJ20X10131 | Running Capacitor |
|
- | |||||
| 1059 | WJ26X10320 | Remote Controller |
|
- | |||||
| 1066 | WJ37X10001 | Lead Wire |
|
- | |||||
| 1095 | WJ05X10062 | Spacer |
|
- | |||||
| 1096 | WJ05X10063 | Spacer |
|
- | |||||
| 1230 | WJ01X10342 | Pwb Holder |
|
- | |||||
| 1351 | WP23X10003 | Fuse (250v,4a) |
|
- | |||||
| 1352 | WJ27X10008 | Varistor |
|
- | |||||
| 1430 | WJ27X10115 | Comp. Wiring |
|
- | |||||
| 1451 | WJ20X10117 | Fan Mtr Capacitor |
|
- | |||||
| 1530 | WJ26X10318 | Control Base |
|
- | |||||
| 1540 | WJ29X10036 | Control Sheet |
|
- | |||||
| 1550 | WJ29X10037 | Control Unit |
|
- | |||||
| 1560 | WJ45X10029 | Insulator |
|
- | |||||
| 1570 | WJ45X10028 | Insulator |
|
- | |||||
| 1580 | WJ01X10381 | Special Screw |
|
- | |||||
| 1710 | WJ01X10382 | Control Rubber |
|
- | |||||
| 1800 | WJ27X10114 | Transformer |
|
- | |||||
| 1810 | WJ76X10288 | Terminal Holder |
|
- | |||||
| 1820 | WJ27X10113 | Terminal Pwb |
|
- | |||||
| 1830 | WJ79X10203 | Terminal Cover |
|
- |
