SELECT A DIAGRAM

1 - Door


2 - Cabinet (1)


3 - Cabinet (2)


4 - Shelves & Drawers


5 - Machine Compartment

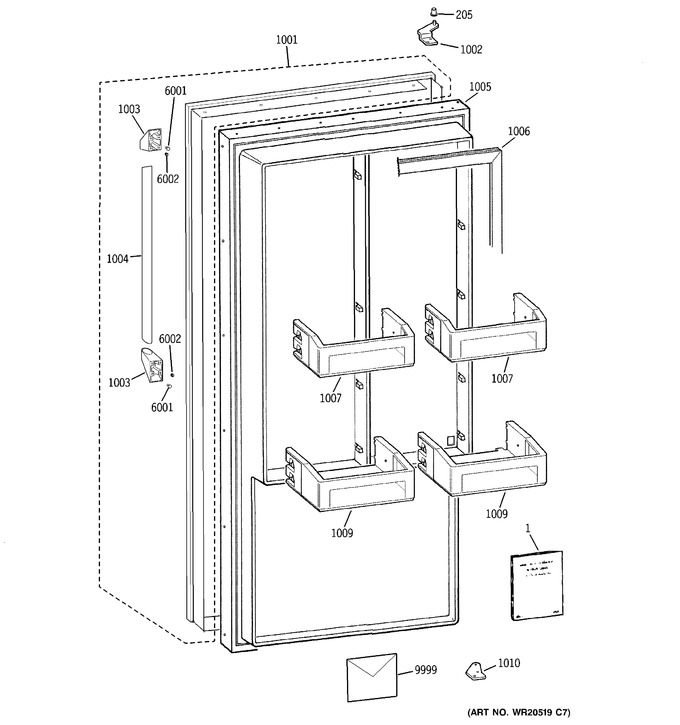

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51763		Mini Manual Sd Fz		Appelez-nous	-
1	49-60562		Owner's Manual		Appelez-nous	-
1	31-46148		Installation Instruction		Appelez-nous	-
205	WG03A00012		Bushing Hinge Top   (Replaces: WR02X10954)				$ 44.40
1001	WR78X12370		Wrap Asm Sd Pro Lh		Appelez-nous	-
1002	WR13X10210		Hinge Door Top Ff Lh		Appelez-nous	-
1003	WS01L06952		Cap End   (Replaces: WR02X12344)				$ 111.02
1004	WG03L01708		Handle Ss   (Replaces: WR12X10842)				$ 99.55
1005	WR78X12372		Pk Door Asm		Appelez-nous	-
1005	WR78X12371		Door Foamed Asm Sd Ff/fz		Appelez-nous	-
1006	WR24X10150		Gasket Door Sd		Appelez-nous	-
1007	WG02L00043		Bin Ff Door W/window   (Replaces: WR71X10138)				$ 94.53
1009	WG03L00003		Bin Door Ff Deep Lh   (Replaces: WR71X10140)				$ 96.90
1010	WR13X10657		Hinge Door Btm		Appelez-nous	-
6001	WR02X12314		Scr 1/4-20 Hx 3/8 S		Appelez-nous	-
6002	WR01X10026		Screw Set 10-32		Appelez-nous	-
9999	WR49X10193		Sd Anti-tip Wall Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
