SELECT A DIAGRAM

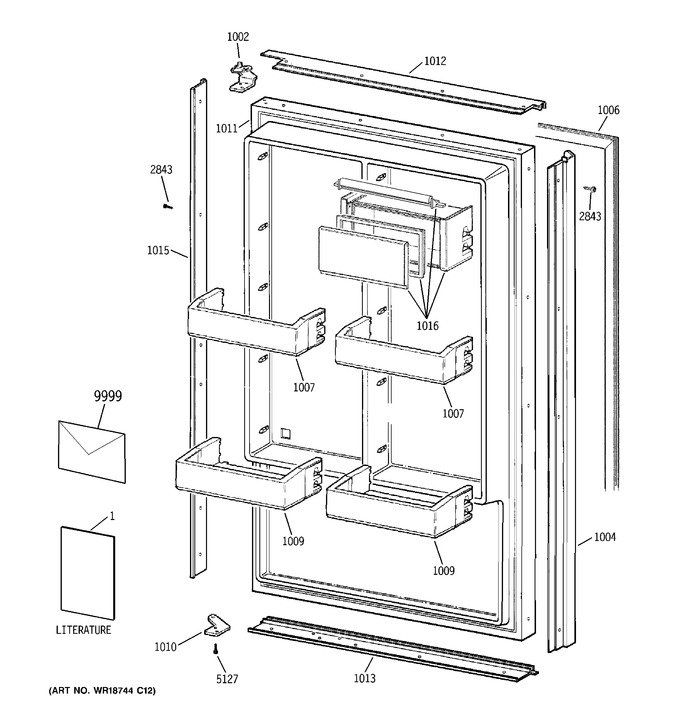

1 - Door


2 - Cabinet Parts


3 - Shelves & Drawers


4 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-46148		Pm Install Instructions		Appelez-nous	-
1	31-51762		Minimanual Sd Ff		Appelez-nous	-
1	49-60562		Pm Owners Manual		Appelez-nous	-
1002	WR13X10210		Hinge Asm Door Top		Appelez-nous	-
1004	WR12X10948		Door Handle		Appelez-nous	-
1006	WR24X10150		Gasket Door Sd		Appelez-nous	-
1007	WG02L00043		Bin, Ff Door W/window   (Replaces: WR71X10138)				$ 105.03
1009	WG03L00003		Bin, Door Ff Deep Lh   (Replaces: WR71X10140)				$ 107.67
1010	WR13X10657		Hinge Door Btm		Appelez-nous	-
1011	WR78X12372		Sd Service Door Kit		Appelez-nous	-
1012	WR17X12709		Trim Top Rh		Appelez-nous	-
1013	WR17X12708		Trim Bottom Rh		Appelez-nous	-
1015	WR12X10952		Handle Trim Asm Rh		Appelez-nous	-
1016	WR71X10142		Asm Dairy Comp		Appelez-nous	-
2843	WR01X10484		8-32 X 5/8" Ph Ss Tcs		Appelez-nous	-
5127	WR01X10177		Hinge Screw Door Btm.		Appelez-nous	-
9999	WR49X10193		Anti-tip Hardware Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
