SELECT A DIAGRAM

1 - Freezer Doors


2 - Fresh Food Doors


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts


8 - Machine Compartment


9 - Clad Components

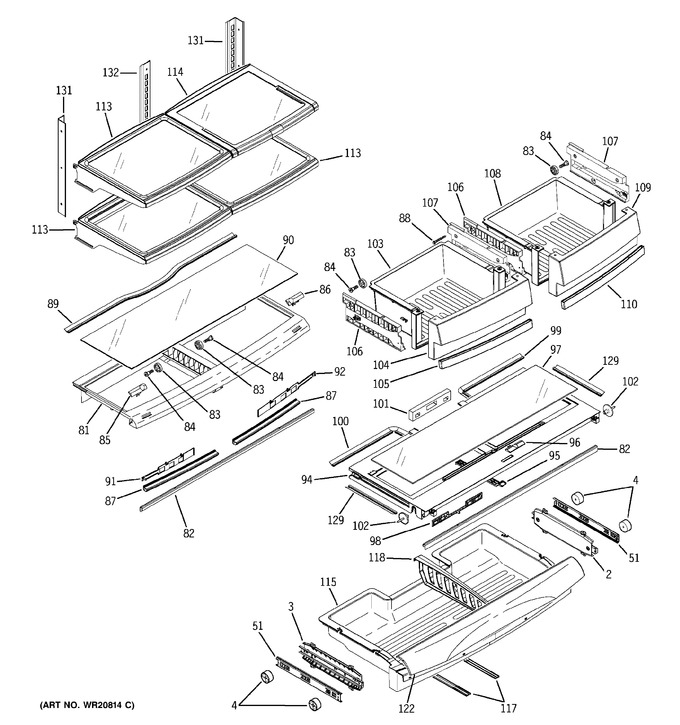

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WR72X10281		Slide & Bracket Asm		Appelez-nous	-
3	WR72X10282		Slide & Bracket Asm		Appelez-nous	-
4	WR01A00892		Spacer   (Replaces: WR72X10260)				$ 12.40
51	WR72X10219		Slide Liner		Appelez-nous	-
81	WR01L00905		Cover Top Veg Pan   (Replaces: WR32X10809)			Immediately	$ 114.45
82	WR17X12243		Bar Reinforcement		Appelez-nous	-
83	WR01F01936		Wheel Slide   (Replaces: WR01X10937)				$ 4.20
84	WR01A00639		Scr10-16pl Flt25 5/8s Zn   (Replaces: WR01X10968)				$ 4.20
85	WR01F00500		Slide Control   (Replaces: WR17X12586)				$ 4.20
86	WR01F00501		Slide Control   (Replaces: WR17X12587)				$ 3.97
87	WR01L02149		Gasket Pan Cvr Front   (Replaces: WR14X10321)				$ 10.29
88	WR01X10634		Scr 8-18 Ab 13/4 S Hxw		Appelez-nous	-
89	WR14X10215		Gasket Pan Veg Frame		Appelez-nous	-
90	WR01L02197		Glass Cover Veg Pan   (Replaces: WR32X10810)				$ 67.09
91	WR01F01711		Damper   (Replaces: WR17X12588)				$ 5.36
92	WR17X12589		Damper		Appelez-nous	-
94	WR01L02030		Frame Pan Meat   (Replaces: WR72X10218)				$ 86.88
95	WR02X12372		Linkage Bar Meat Pan 21		Appelez-nous	-
96	WR01A00802		Slide Control Meat Pan   (Replaces: WR17X12245)				$ 13.97
97	WR32X10606		Shelf Cant Glass		Appelez-nous	-
98	WR17X12246		Damper Meat Pan		Appelez-nous	-
99	WR14X10217		Gasket Frame Meat Side		Appelez-nous	-
100	WR14X10218		Gasket Frame Meat Side		Appelez-nous	-
101	WR01L02141		Gasket Inlet Meat Pan   (Replaces: WR14X10219)				$ 27.82
102	WR01A00975		Support Veg Pan Asm   (Replaces: WR02X12373)			Immediately	$ 4.76
103	WR32X10814		Pan Veg Rear Lh		Appelez-nous	-
104	WR01L03070		Pan Veg Front Lh   (Replaces: WR32X10812)				$ 15.66
105	WR17X12750		Handle Pan Veg Rh		Appelez-nous	-
106	WR72X10373		Side Track Rh		Appelez-nous	-
107	WR72X10374		Side Track Lh		Appelez-nous	-
108	WR32X10813		Pan Veg Rear Rh		Appelez-nous	-
109	WR01L03069		Pan Veg Front Rh   (Replaces: WR32X10811)				$ 18.26
110	WR17X12751		Handle Pan Veg Lh		Appelez-nous	-
113	WR71X10873		Shelf Asm Slideout		Appelez-nous	-
114	WR71X10874		Shelf Asm Tuckaway		Appelez-nous	-
115	WR01L03038		Meat Pan   (Replaces: WR32X10805)				$ 73.08
117	WR38X10398		Trim Bottom Pan Meat		Appelez-nous	-
118	WR02X12379		Divider Pan		Appelez-nous	-
122	WR01L00816		Cover Flip Lid   (Replaces: WR17X12257)				$ 68.10
129	WR14X10216		Gasket Pan Veg Frame		Appelez-nous	-
131	WR01F01860		Track Side Ff   (Replaces: WR72X10236)				$ 62.61
132	WR72X10235		Track Center Ff		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
