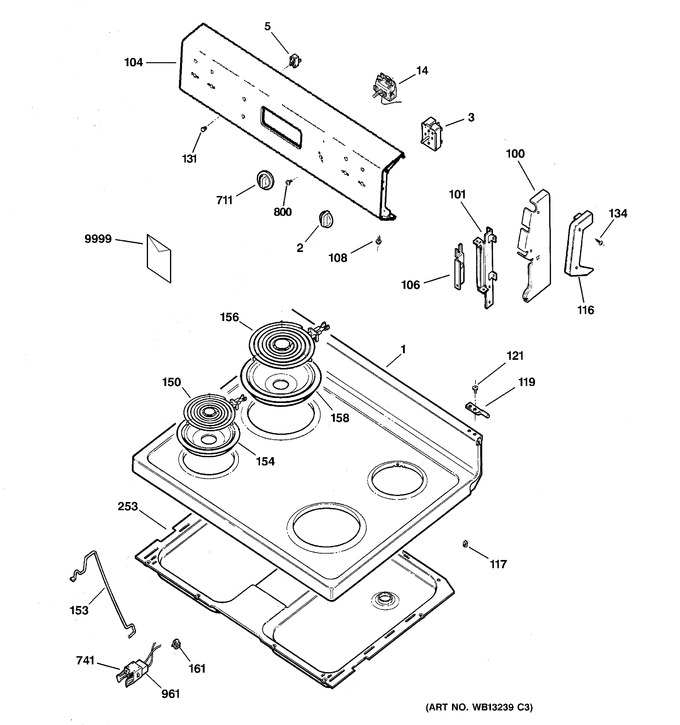

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62K10086 | Cooktop Black |
|
- | |||||
| 2 | WB03T10072 | Inf Knob (blk) |
|
- | |||||
| 3 | WS01F01651 | Inf Sw Cntl 2100w (Replaces: WB24T10027) |
|
Immediately | $ 61.32 | ||||
| 3 | WB24T10022 | Inf Switch Cntl 1250w |
|
$ 48.75 | |||||
| 5 | WS01F01697 | Lamp Pilot (Replaces: WB25K10002) |
|
Immediately | $ 7.15 | ||||
| 14 | WB02K10070 | Carton Cover Thermostat |
|
- | |||||
| 14 | WS01F02680 | Thermostat Electric (Replaces: WB20K10026) |
|
Immediately | $ 177.72 | ||||
| 100 | WB07K10023 | Cover End Lt (blk) |
|
- | |||||
| 100 | WB07K10022 | Cover End Rt (blk) |
|
- | |||||
| 101 | WB37K17 | Plate End Right |
|
- | |||||
| 101 | WB37K18 | Plate End Left |
|
- | |||||
| 104 | WB36K10865 | Trim & Bracket Asm Weld |
|
- | |||||
| 106 | WB10K10002 | Support Hinge Cktp Lt |
|
- | |||||
| 106 | WB10K10001 | Support Hinge Cktp Rt |
|
- | |||||
| 108 | WS01A01408 | Screw (blk) (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.57 | |||||
| 116 | WB07K10003 | End Cap Rt (blk) |
|
- | |||||
| 116 | WB07K10004 | End Cap Lt (blk) |
|
- | |||||
| 117 | WS01A00636 | Pin Locator (Replaces: WB02K10075) |
|
$ 4.20 | |||||
| 117 | WB2K17 | Pin Locator |
|
- | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 131 | WB25K2 | Lens |
|
- | |||||
| 134 | WB01K10003 | Screw-mtg End Cap (blk) |
|
- | |||||
| 150 | WB30K10023 | Surface Unit Asm 6" |
|
- | |||||
| 153 | WS01A00511 | Rod Support (Replaces: WB02K10026) |
|
$ 3.57 | |||||
| 154 | WB31T10014 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30K10021 | Surface Unit Asm 8" |
|
- | |||||
| 158 | WG02L01430 | Burner Bowl 8" (Replaces: WB31T10015) |
|
Immediately | $ 24.33 | ||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.57 | ||||
| 253 | WB64K10009 | Box Cooktop |
|
- | |||||
| 711 | WB03K10205 | Asm Knob Ge Thermostat |
|
- | |||||
| 741 | WS01A00907 | Clip Receptical (Replaces: WB02K10133) |
|
Immediately | $ 4.48 | ||||
| 800 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- | |||||
| 961 | PM2M2261 | Block Insulator (Replaces: WB17K10003) |
|
Immediately | $ 28.29 | ||||
| 9999 | 49-88041 | Pm Use And Care Manual |
|
- | |||||
| 9999 | 31-21072 | Pm Minimanual/elec Diag |
|
- | |||||
| 9999 | 31-21416 | Pm Install. Instructions |
|
- | |||||
| 9999 | WS01A01257 | Screw (Replaces: WB01T10020) |
|
$ 3.57 |
