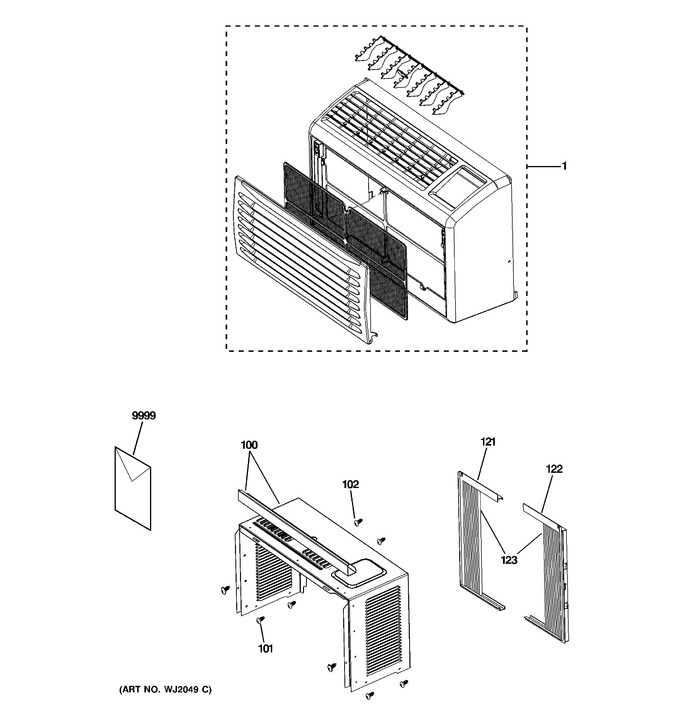

1 - Grille & Chassis Parts
2 - Control Parts
3 - Base Pan & Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ82X10094 | Panel Asm , Front |
|
- | |||||
| 100 | WJ90X10139 | Cabinet Asm |
|
- | |||||
| 101 | WJ01X10437 | Screw |
|
- | |||||
| 102 | WJ01X10438 | Screw |
|
- | |||||
| 121 | WJ69X10022 | Left Frame |
|
- | |||||
| 122 | WJ69X10023 | Right Frame |
|
- | |||||
| 123 | WJ69X10024 | Curtain |
|
- | |||||
| 9999 | 49-7689 | Use & Care Manual |
|
- | |||||
| 9999 | 31-61646 | Mini Manual |
|
- | |||||
| 9999 | 49-7675 | Use & Care Manual |
|
- |
