SELECT A DIAGRAM

1 - Door Parts


2 - Control Parts


3 - Oven Cavity Parts


4 - Latch Board Parts


5 - Interior Parts (1)


6 - Interior Parts (2)


7 - Installation Parts

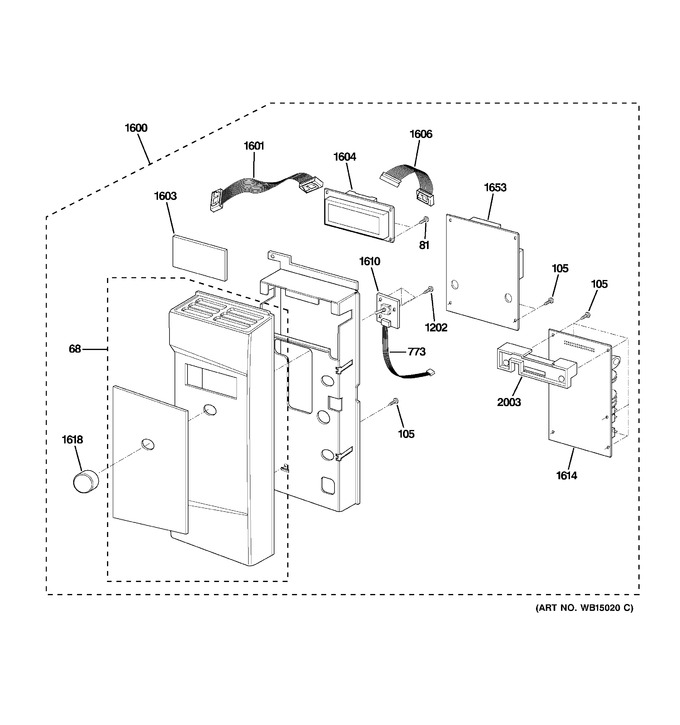

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
68	WB07X11314		Controller Panel, Bb		Appelez-nous	-
68	WB07X11312		Controller Asm,sub		Appelez-nous	-
68	WB07X11315		Controller Panel, Ww		Appelez-nous	-
81	WB02X10728		Screw Tapping,pan Head		Appelez-nous	-
105	TTL0402618		Tapping Screw		Appelez-nous	-
773	WB18X10411		Harness,pcb To Dial Pcb		Appelez-nous	-
1202	WB02X10730		Screw - Pan Head Tapping		Appelez-nous	-
1600	WB27X11144		Controller Asm,tact		Appelez-nous	-
1600	WB27X11142		Controller Asm		Appelez-nous	-
1600	WB27X11143		Controller Asm		Appelez-nous	-
1601	WB18X10457		Harness,single		Appelez-nous	-
1603	WB41X10001		Cover,display		Appelez-nous	-
1604	WB06X10835		Vf Display		Appelez-nous	-
1606	WB18X10459		Harness,single		Appelez-nous	-
1610	WG02L09547		Board, Encoder   (Replaces: WB27X11022)				$ 88.13
1614	WB27X11111		Pcb Asm		Appelez-nous	-
1618	WB03X10329		Knob		Appelez-nous	-
1618	WB03X10330		Knob		Appelez-nous	-
1653	WB27X11141		Board,main		Appelez-nous	-
2003	WB06X10840		Holder. Pcb		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
