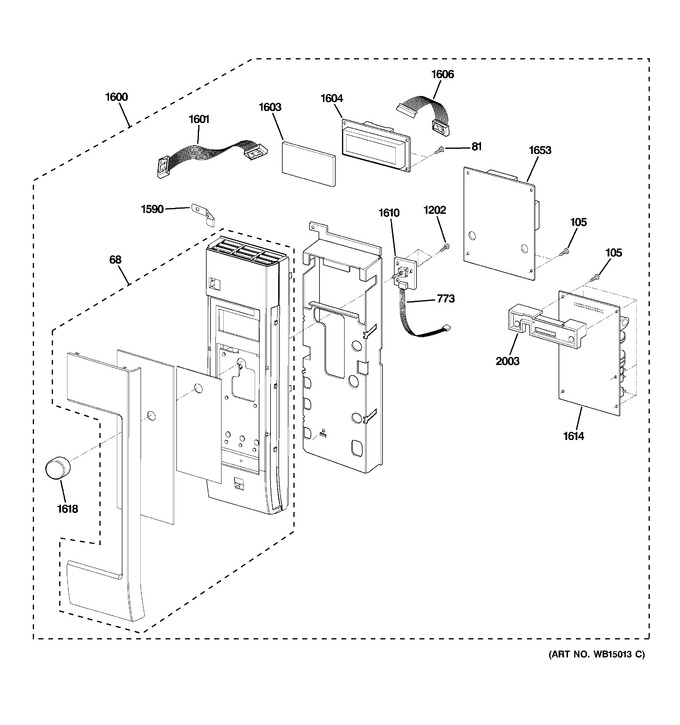

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 68 | WB07X11308 | Controller Panel, Ss |
|
- | |||||
| 81 | WB02X10728 | Screw Tapping,pan Head |
|
- | |||||
| 105 | TTL0402618 | Tapping Screw |
|
- | |||||
| 773 | WB18X10411 | Harness,pcb To Dial Pcb |
|
- | |||||
| 1202 | WB02X10730 | Screw - Pan Head Tapping |
|
- | |||||
| 1590 | WB06X10837 | Bracket,idle |
|
- | |||||
| 1600 | WB27X11145 | Controller Asm,tact |
|
- | |||||
| 1601 | WB18X10457 | Harness,single |
|
- | |||||
| 1603 | WB41X10001 | Cover,display |
|
- | |||||
| 1604 | WB06X10835 | Vf Display |
|
- | |||||
| 1606 | WB18X10459 | Harness,single |
|
- | |||||
| 1610 | WG02L09547 | Board, Encoder (Replaces: WB27X11022) |
|
$ 88.13 | |||||
| 1614 | WB27X11111 | Pcb Asm |
|
- | |||||
| 1618 | WB03X10328 | Knob Asm |
|
- | |||||
| 1653 | WB27X11141 | Board,main |
|
- | |||||
| 2003 | WB06X10840 | Holder. Pcb |
|
- |
