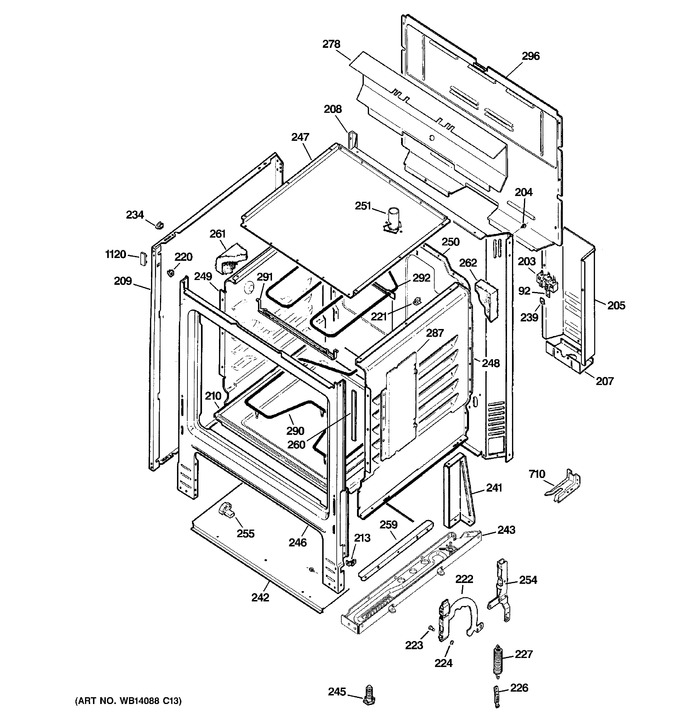

2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 92 | WS01A00445 | Screw Ground (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 203 | WG02F02750 | Terminal Block Asm (Replaces: WB17T10011) |
|
Immediately | $ 143.06 | ||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 14.29 | |||||
| 204 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 205 | WB34K10029 | Guard Terminal |
|
- | |||||
| 207 | WB02K10029 | Bracket Mtg Terminal |
|
- | |||||
| 208 | WB63K10005 | Range Back |
|
- | |||||
| 209 | WB63K10144 | Panel Side |
|
- | |||||
| 210 | WB63K10006 | Oven Bottom |
|
- | |||||
| 213 | WS01A01039 | Nut Speed (Replaces: WB1K3) |
|
$ 3.57 | |||||
| 220 | WB2K8 | Grommet |
|
- | |||||
| 221 | WB2K10 | Clip Capillary |
|
- | |||||
| 222 | WB10K12 | Hinge Asm Guide |
|
- | |||||
| 223 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 224 | WB2X1082 | Ring Retaining |
|
- | |||||
| 226 | WS01A01246 | Hook Door Spring (Replaces: WB09K10001) |
|
$ 6.09 | |||||
| 227 | WB09K10004 | Spring Door |
|
- | |||||
| 234 | WB2K66 | Guide Support Rgtp |
|
- | |||||
| 239 | WB2X646 | Plate-ground |
|
- | |||||
| 241 | NOT_STOCKED | Support Oven Rear |
|
- | |||||
| 242 | WB63K10009 | Guard Insulation Bottom |
|
- | |||||
| 243 | WB63K10027 | Base Support Rt |
|
- | |||||
| 243 | WG02L02342 | Base Support Lf (Replaces: WB63K10028) |
|
$ 34.02 | |||||
| 245 | WS01L05470 | Leg Leveler (Replaces: WB02K10182) |
|
Immediately | $ 3.57 | ||||
| 246 | WB63K10149 | Frame Weld Asm. |
|
- | |||||
| 247 | WB63K10021 | Oven Top |
|
- | |||||
| 248 | WB63K10146 | Oven Side Right |
|
- | |||||
| 249 | WB63K10147 | Oven Side Left |
|
- | |||||
| 250 | WB63K10016 | Back Oven |
|
- | |||||
| 251 | WB04K10002 | Vent Cover |
|
- | |||||
| 251 | WB38K10002 | Tube-vent |
|
- | |||||
| 254 | WS01A00794 | Support Asm Rivet Lf (Replaces: WB10K10010) |
|
$ 32.07 | |||||
| 254 | WS01A01073 | Screw Mtg Hinge (torx) (Replaces: WB1K53) |
|
$ 3.57 | |||||
| 254 | WB10K10009 | Support Asm Rivet Rt |
|
- | |||||
| 255 | WS01A00942 | Drawer Support (Replaces: WB02K10158) |
|
Immediately | $ 4.07 | ||||
| 259 | WS01L00759 | Rail Drawer (Replaces: WB39K16) |
|
Immediately | $ 11.44 | ||||
| 261 | WS01F00054 | Insulation Oven Wrap (Replaces: WB35K10108) |
|
$ 73.44 | |||||
| 262 | WB35K10107 | Insulation Oven Back |
|
- | |||||
| 278 | WB34K10032 | Divider Wiring |
|
- | |||||
| 290 | WS01F11296 | Bake Element (Replaces: WB44K10005) |
|
Immediately | $ 68.72 | ||||
| 291 | WS01A00816 | Support Broil (Replaces: WB02K10028) |
|
$ 16.61 | |||||
| 292 | WS01F11295 | Broil Element (Replaces: WB44K10002) |
|
Immediately | $ 65.56 | ||||
| 296 | WB34K10031 | Cover Back |
|
- | |||||
| 710 | WS01A00671 | Bracket Asm Anti-tip (Replaces: WB02K10254) |
|
Immediately | $ 13.75 | ||||
| 1120 | WS01L07747 | Bumper (Replaces: WB02K10179) |
|
$ 3.57 |
