Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 241786015 Gasket-refr Door,white ,magnetic   (Replaces: 241786003) In-Stock Immediately $ 105.18

4 240363701 Bin-door,2-liter In-Stock Immediately $ 66.02

7 240338313 Door,dairy ,clear   (Replaces: 240338303) In-Stock Immediately $ 89.78

13 240581903 Door Stop,bisque ,ref Special Order $ 29.87

15 242038853 Door-refr,bisque ,complete Assy Appelez-nous -
18 242059105 Handle-door,bisque Appelez-nous -
21 241695904 Screw Special Order $ 16.01

22 242015301 Bearing-hinge(ref),natural ,closer Special Order $ 12.71

49 240324501 Bin-door,gallon In-Stock Immediately $ 76.73

21A 240442708 Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706) Special Order $ 9.27

22B 240328402 Bearing-hinge,natural ,upper Special Order $ 22.05


    View Diagram in Separate Window     Print Icon   Print Part List

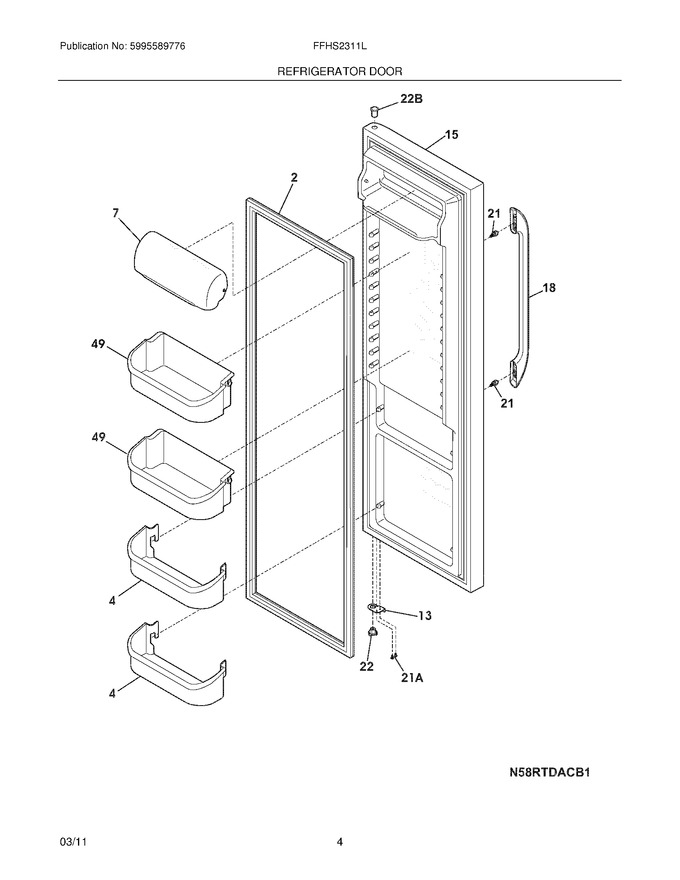

Diagram for FFHS2311LQ2
