SELECT A DIAGRAM

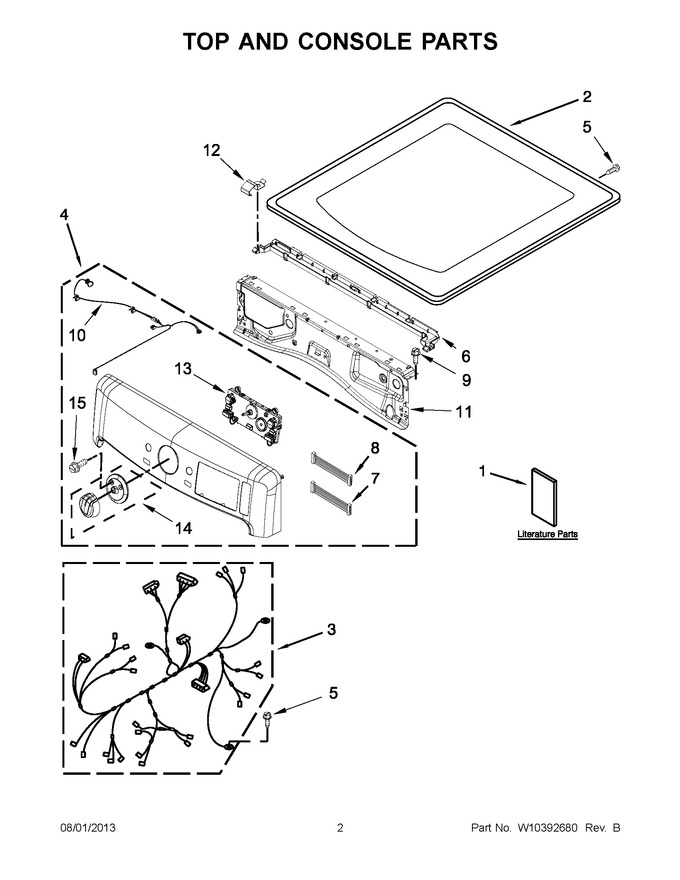

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10315512		Tech Sheet		Appelez-nous	-
1	W10297008		Wiring Diagram		Appelez-nous	-
1	W10312952		Use & Care Guide		Appelez-nous	-
1	W10057363		Installation Instructions		Appelez-nous	-
2	W10337792		Top (red)				$ 136.71
2	W10301057		Top (cosmetallic)				$ 139.14
2	WPW10208383		Top (white)   (Replaces: W10208383)				$ 323.93
3	W10355893		Harness, Main		Appelez-nous	-
4	W10392722		Panel, Console (white)				$ 387.39
4	W10392724		Panel, Console (red)		Appelez-nous	-
4	WPW10392723		Panel, Console (cosmetallic)   (Replaces: W10392723)				$ 713.76
5	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
6	WPW10653575		Channel, Water   (Replaces: W10317570)				$ 90.94
7	W10309986		Harness, Jumper				$ 16.85
8	W10309987		Harness, Jumper				$ 13.08
9	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
10	W10267833		Cable, User Interface		Appelez-nous	-
11	W11480682		Bracket, Console   (Replaces: W10208198)				$ 81.21
12	W10317566		Clip, Spring				$ 9.16
13	W10267956		Ui, Center (includes Knob And Inlay)		Appelez-nous	-
14	W10514146		Kit, Knob And Inlay			Immediately	$ 96.76
15	WP8533993		Screw   (Replaces: W10146359)				$ 11.21
