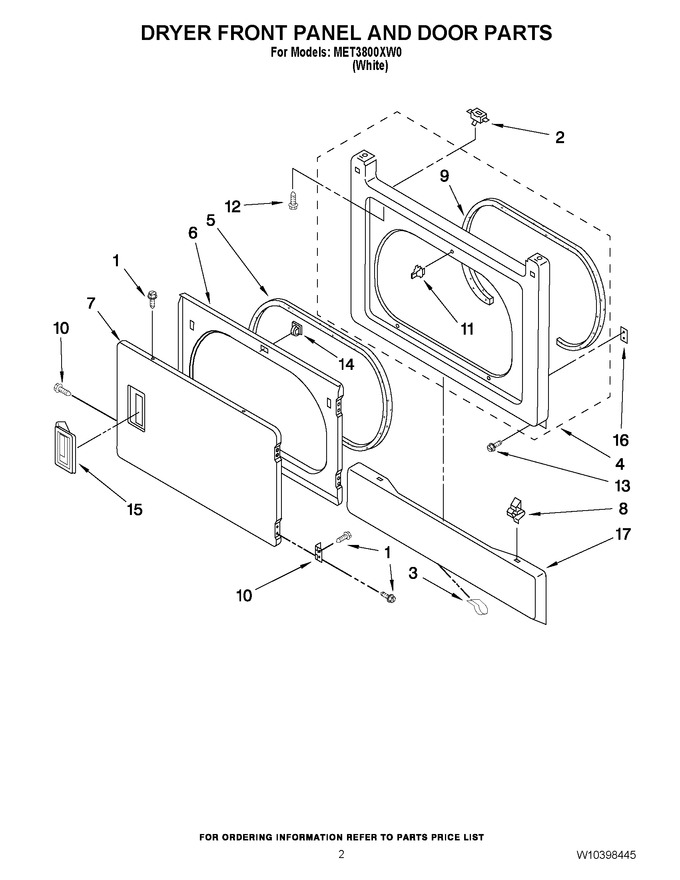

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3420551		Screw, 8-18 X 1/2		Appelez-nous	-
2	WP3391902		Switch, Door   (Replaces: 3391902)			Immediately	$ 61.25
3	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
4	279718		Panel, Front   (Replaces: 3392547)				$ 407.34
5	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
6	280083		Door, Rear   (Replaces: W10323061)				$ 301.37
7	W11663440		Door, Front   (Replaces: W10322546)				$ 272.34
8	WP3388229		Retainer, Toe Panel (2)   (Replaces: 3388229)			Immediately	$ 8.45
9	WP3387242		Bearing & Seal   (Replaces: 3387242)			Immediately	$ 31.42
10	WPW10279703		Hinge & Pin Door (2)   (Replaces: W10279703)				$ 75.83
11	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.89
12	WP3395530		Screw, Door Switch Mounting (2)   (Replaces: 697773)				$ 8.57
13	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
14	279570		Catch, Door   (Replaces: 3392538)			Immediately	$ 8.89
15	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 79.54
16	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.67
17	3388958		Panel, Toe				$ 138.76
