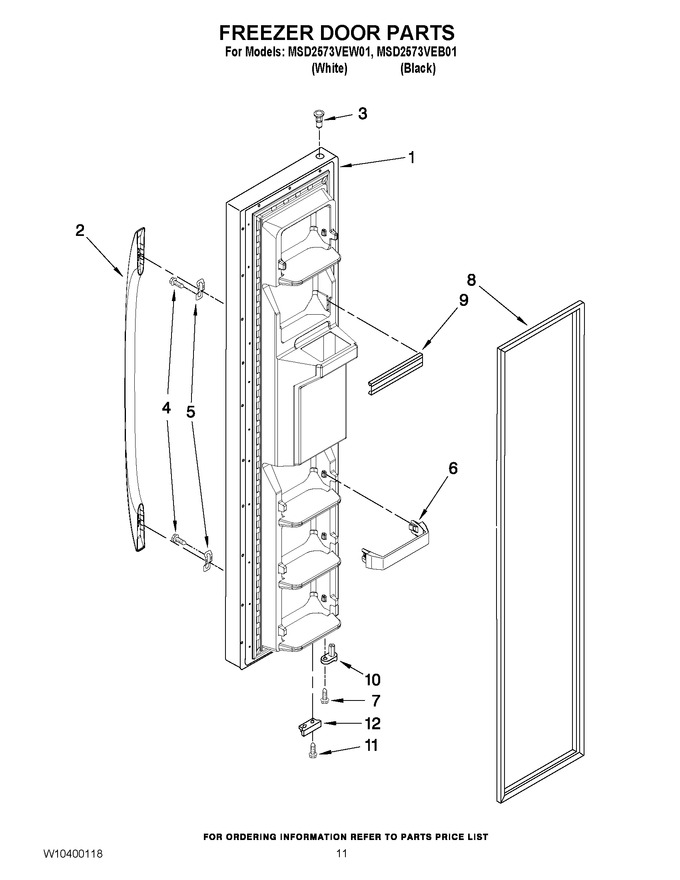

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10280435		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10280421		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	WPW10170749		Handle (white)   (Replaces: W10170749)				$ 299.26
2	WPW10170750		Handle (black)   (Replaces: W10170750)				$ 295.08
3	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.76
4	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
5	WP2255411		Trim, Handle   (Replaces: 2255411)				$ 34.81
6	WP2309718		Trivet (4)   (Replaces: 2309718)				$ 58.56
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309532)				$ 310.19
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307490)			Immediately	$ 23.11
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534W		Bracket, Door Stop (white)		Appelez-nous	-
