SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts

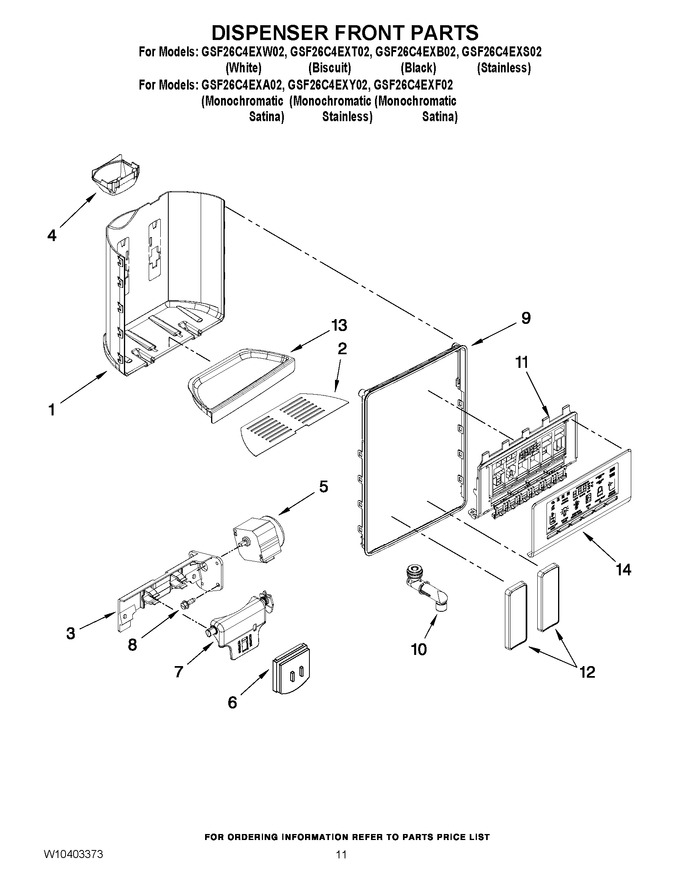

07 - Dispenser Front Parts


08 - Unit Parts


09 - Icemaker Parts


10 - Motor And Ice Container Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276197		Grate, Drip Tray   (Replaces: W10276197)				$ 75.21
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Chute, Door   (Replaces: W10339578)				$ 23.94
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	WPW10493172		Ice Door Assembly (includes Items 3, 5, 7, & 8)   (Replaces: W10353567)				$ 239.86
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276188		Trim Ring (biscuit)		Appelez-nous	-
9	W10254306		Trim Ring (chromium Frost)		Appelez-nous	-
9	WPW10276186		Trim Ring (white)   (Replaces: W10276186)				$ 62.93
10	WP2305235		Spigot   (Replaces: 2305235)				$ 147.07
11	WPW10372206		Electronic Control Assy   (Replaces: W10254282)				$ 326.29
12	WPW10370593		Pad, Ice & Water (white)   (Replaces: W10290361)				$ 311.61
12	WPW10370594		Pad, Ice & Water (midnight Grey)   (Replaces: W10290362)				$ 310.61
12	WPW10370592		Pad, Ice & Water (black)   (Replaces: W10238111)				$ 322.90
12	WPW10370593		Pad, Ice & Water (biscuit)   (Replaces: W10290363)				$ 311.61
13	WPW10276196		Tray, Housing (satina)   (Replaces: W10276196)				$ 69.32
13	W10276193		Tray, Housing (white)		Appelez-nous	-
13	W10276194		Tray, Housing (black)				$ 69.36
13	W10276195		Tray, Housing (bsicuit)		Appelez-nous	-
14	WPW10254285		Front Cover (silver)   (Replaces: W10254285)				$ 305.88
14	W10276229		Front Cover (black)				$ 273.65

    View Diagram in Separate Window       Print Part List
