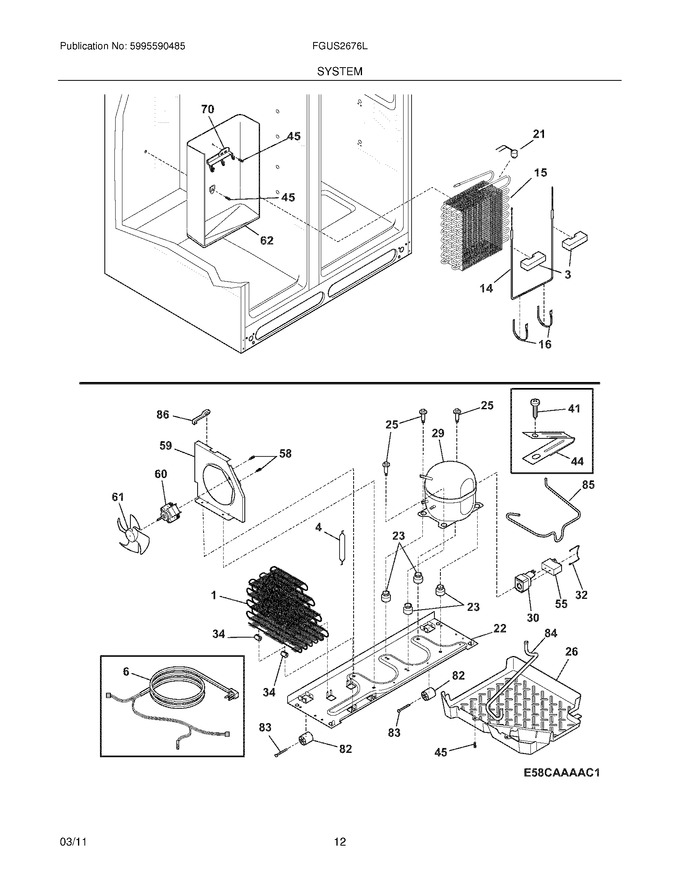

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242106601		Condenser		Appelez-nous	-
3	218679614		Block-evap Coil,styrofoam ,(2)   (Replaces: 218679607)				$ 22.05
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
22	240330012		Base-compressor				$ 133.73
23	218513300		Grommet-compr Mtg,(4)				$ 47.25
25	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
26	241697603		Pan-defrost   (Replaces: 241697602)				$ 88.02
32	241982601		Clamp,elec Cont Mtg ,compressor				$ 10.63
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 22.05
41	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
55	297286803		Capacitor-run			Immediately	$ 31.97
58	240569201		Screw,8-18 X 0.500		Appelez-nous	-
59	241946106		Shroud-cond Fan				$ 50.40
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 24.43
62	240429405		Trough-drain		Appelez-nous	-
70	218990801		Bracket-evap/cvr Mtg				$ 70.88
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 39.27
84	241830905		Tube-drain,lower   (Replaces: 241830903)				$ 22.05
85	241856909		Tube-connector,suction   (Replaces: 241856903)				$ 182.85
86	240409302		Spacer-cond Tube,black				$ 74.99
F14	242044113		Heater-defrost			Immediately	$ 115.24
F15	5303918284		Evaporator Kit				$ 534.45
F21	5303918214		Thermostat-defrost,kit			Immediately	$ 37.13
F29	5304511982		Compressor,w/o Electricals   (Replaces: 240550922)				$ 547.02
F30	241941003		Starter				$ 105.33
F4	242047601		Drier-filter		Appelez-nous	-
F6	241516904		Cord-service   (Replaces: 241516901)			Immediately	$ 42.98
F60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 157.40
FNI	5303918327		Heat Exchanger Kit,suction Line				$ 337.68
FNI	241519902		Harness-wiring				$ 83.84
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	240346701		Tape-foam Seal,shroud				$ 33.08
NI	242008702		Harness-wiring,machine Compt				$ 152.29
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
NI	241852501		Clip,wiring Harness				$ 17.33
NI	240359403		Screw-fan Shroud,(2)				$ 4.21
