SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
12 - Wiring Schematic
13 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

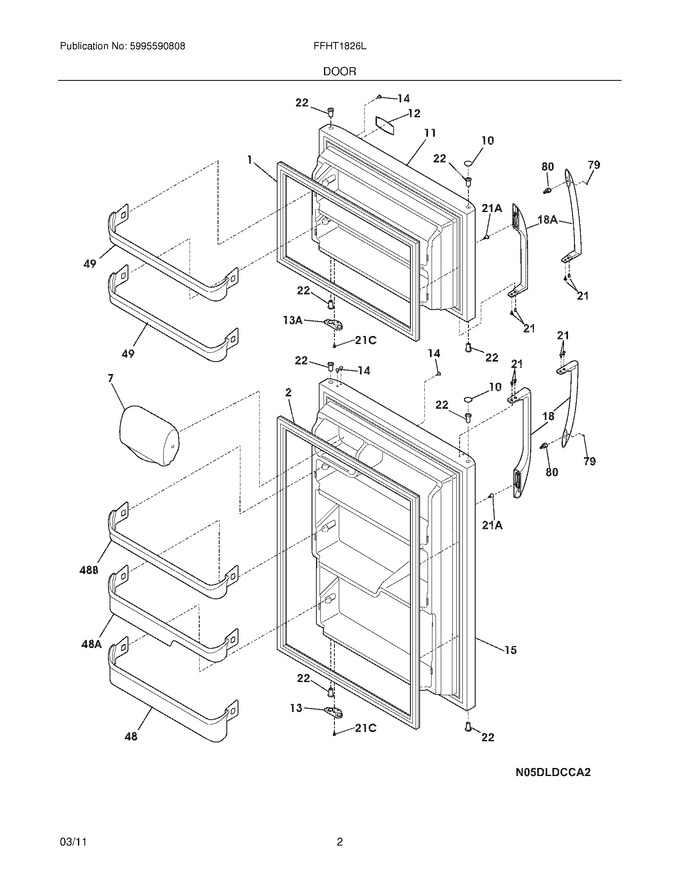

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 10 | 240381307 | Plug-button,silver Mist ,hinge Brg Hole (Replaces: 240381306) |
|
Immediately | $ 18.54 | ||||
| 11 | 240409921 | Door-frzr,silver Mist ,complete Assy |
|
$ 699.83 | |||||
| 12 | 242016301 | Nameplate |
|
$ 4.73 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 14 | 240494006 | Plug-button,silver Mist |
|
$ 19.69 | |||||
| 15 | 240410134 | Door-refr,silver Mist ,complete Assy |
|
$ 662.66 | |||||
| 18 | 5304506471 | Handle-door,black ,refr-rh/frzr-lh (Replaces: 242059506) |
|
Immediately | $ 106.18 | ||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 , (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 58.19 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 48.10 | ||||
| 13A | 240312415 | Door Stop,black ,frzr |
|
$ 23.63 | |||||
| 18A | 5304506471 | Handle-door,black ,refr-lh/frzr-rh (Replaces: 242059503) |
|
Immediately | $ 106.18 | ||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 33.55 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 57.92 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 38.84 | ||||
| F1 | 241872509 | Gasket-frzr Door,black ,magnetic |
|
Immediately | $ 182.39 | ||||
| F2 | 241872512 | Gasket-refr Door,black ,magnetic |
|
Immediately | $ 183.77 |
