SELECT A DIAGRAM

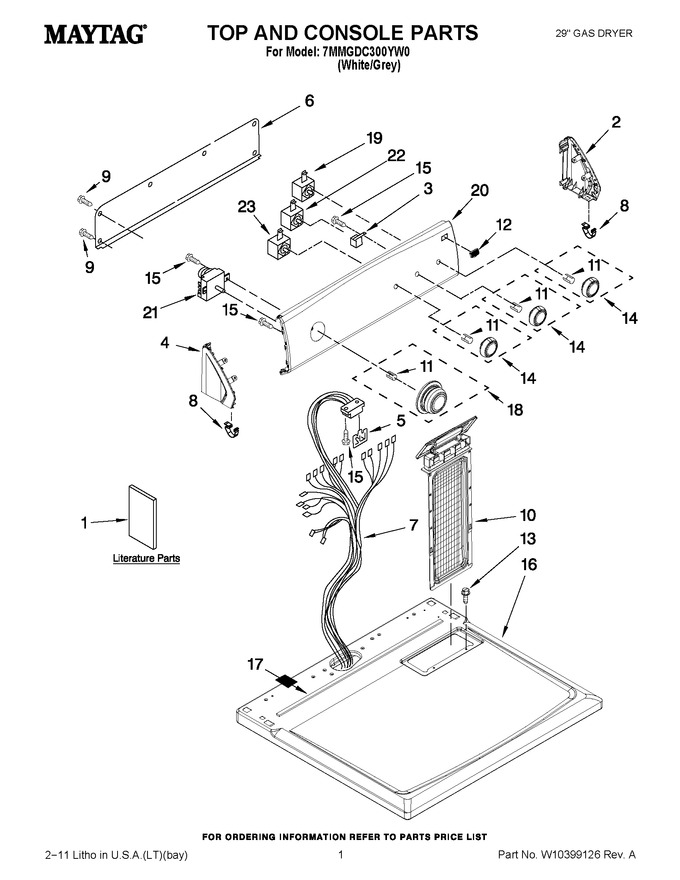

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10368976		Use & Care Guide		Appelez-nous	-
1	W10337814		Wiring Diagram		Appelez-nous	-
1	W10329763		Installation, Instruction		Appelez-nous	-
2	WPW10251355		Endcap (r.h.)   (Replaces: W10251355)				$ 51.39
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10251358		Endcap (l.h.)   (Replaces: W10251358)				$ 51.42
5	WPW10476828		C-version Control   (Replaces: 8558178)			Immediately	$ 329.93
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	W10328032		Harness, Wiring		Appelez-nous	-
8	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 16.35
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	W10199708		Badge, Maytag				$ 53.28
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WPW10327523		Knob, Controls   (Replaces: W10327523)				$ 55.13
15	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 8.25
16	WPW10225059		Top & Seal Assembly   (Replaces: W10225059)				$ 250.69
17	W10316616		Foam Seal Top				$ 27.79
18	WPW10327522		Knob, Timer Assembly   (Replaces: W10327522)				$ 50.97
19	WPW10117655		Switch, Push-to-start   (Replaces: W10117655)			Immediately	$ 85.60
20	W10354027		Console Panel & Bracket Assembly (include Item. 8 )		Appelez-nous	-
21	WPW10337521		Timer Assembly (60 Hz.)   (Replaces: W10337521)				$ 335.61
22	WP3399639		Switch, Rotary Temperature   (Replaces: 3399639)				$ 131.16
23	WP3405156		Switch, Rotary   (Replaces: 3405156)				$ 152.79

    View Diagram in Separate Window       Print Part List
