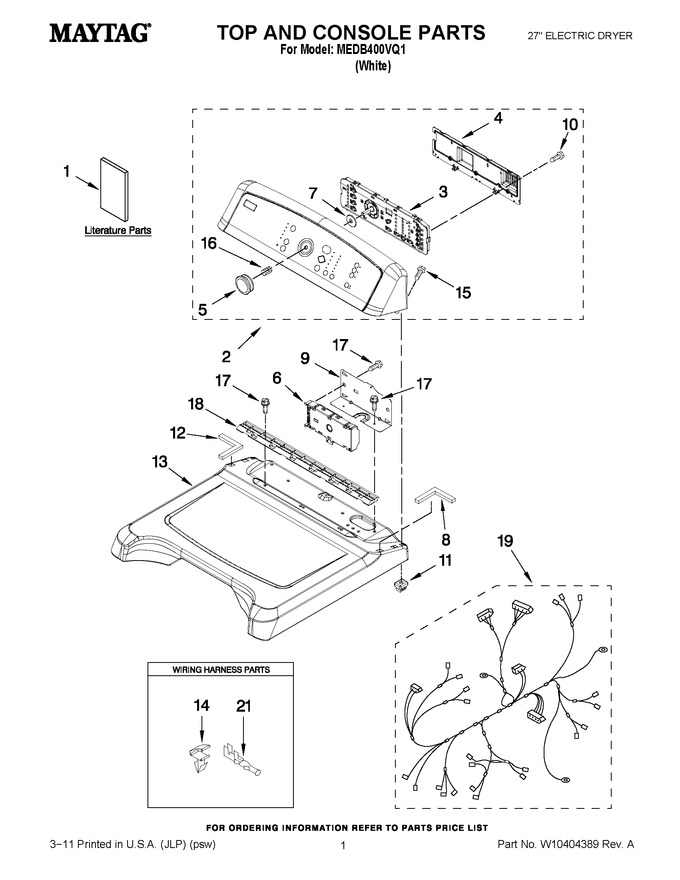

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10388775		Installation, Diagnostic Guide		Appelez-nous	-
1	W10260037		Guide, Use & Care		Appelez-nous	-
1	W10156733		Tech Sheet		Appelez-nous	-
2	W10110298		Panel, Console				$ 301.65
3	W10336133		User Interface				$ 277.33
4	W10051124		Cover, Rear (ui Assembly)				$ 263.67
5	WPW10051126		Knob Assembly   (Replaces: W10051126)				$ 53.77
6	W10111621		Control Electronic				$ 337.91
7	8572039		Seal-ui		Appelez-nous	-
8	W10219694		Foam-top R.h.		Appelez-nous	-
9	8563853		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	W10112673		Screw, Grommet (3)				$ 9.75
12	W10219695		Foam-top L.h.		Appelez-nous	-
13	W10223157		Top				$ 159.40
14	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
15	W10131402		Screw		Appelez-nous	-
16	W10153920		Spring, Knob		Appelez-nous	-
17	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
18	W10110295		Bracket, Console		Appelez-nous	-
19	W10319798		Harness, Electric		Appelez-nous	-
21	WP94614		Terminal   (Replaces: 94614)				$ 8.05
