SELECT A DIAGRAM

01 - Top And Cabinet Parts

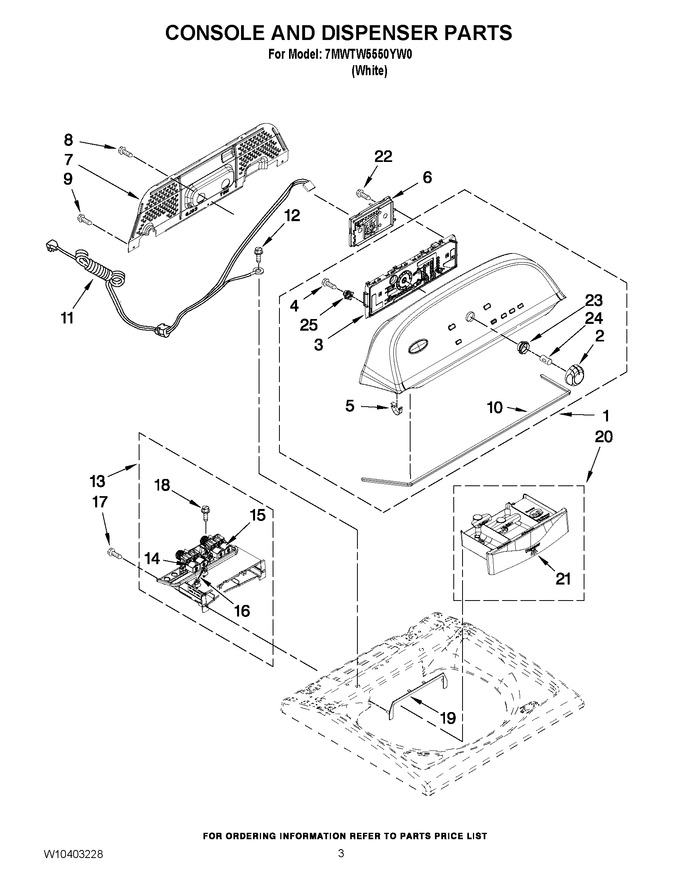

02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329778		Console		Appelez-nous	-
2	WPW10251392		Knob, Control (includes Item 24)   (Replaces: W10251392)				$ 56.71
3	W10269602		User Interface				$ 240.19
4	W10853898		Screw, 8-16 X 3/4   (Replaces: W10219342)			Immediately	$ 7.75
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10393001		Control Unit Assembly, Machine & Motor				$ 357.74
7	W10420984		Panel, Console Rear Cover   (Replaces: W10269597)				$ 328.41
8	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
9	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.86
10	W10280079		Seal, Console		Appelez-nous	-
11	WPW10525195		Cord, Power   (Replaces: W10266797)				$ 137.07
12	W10846509		Screw, Power Cord Ground   (Replaces: 3400076)			Immediately	$ 7.76
13	W11158805		Housing Assembly - Dispenser   (Replaces: W10240963)			Immediately	$ 363.25
14	W11168740		Valve, Cold Water Inlet   (Replaces: W10240949)			Immediately	$ 163.15
15	W11168743		Valve, Hot Water Inlet   (Replaces: W10240948)			Immediately	$ 112.07
16	W10240967		Harness, Valve				$ 170.51
17	WP8281163		Screw, Dispenser Housing Mounting   (Replaces: 8281163)			Immediately	$ 10.19
18	WPW10109200		Screw, Inlet Valve Mounting   (Replaces: 97787)			Immediately	$ 8.00
19	W10240946		Bezel, Dispenser				$ 23.60
20	WPW10658443		Drawer, Dispenser Assembly   (Replaces: W10240958)				$ 109.43
21	WPW10287476		Handle, Dispenser Drawer Facia   (Replaces: W10287476)				$ 62.02
22	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
23	W10325119		Spacer, Knob		Appelez-nous	-
24	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
25	W10274524		Tensioner, Facia		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
