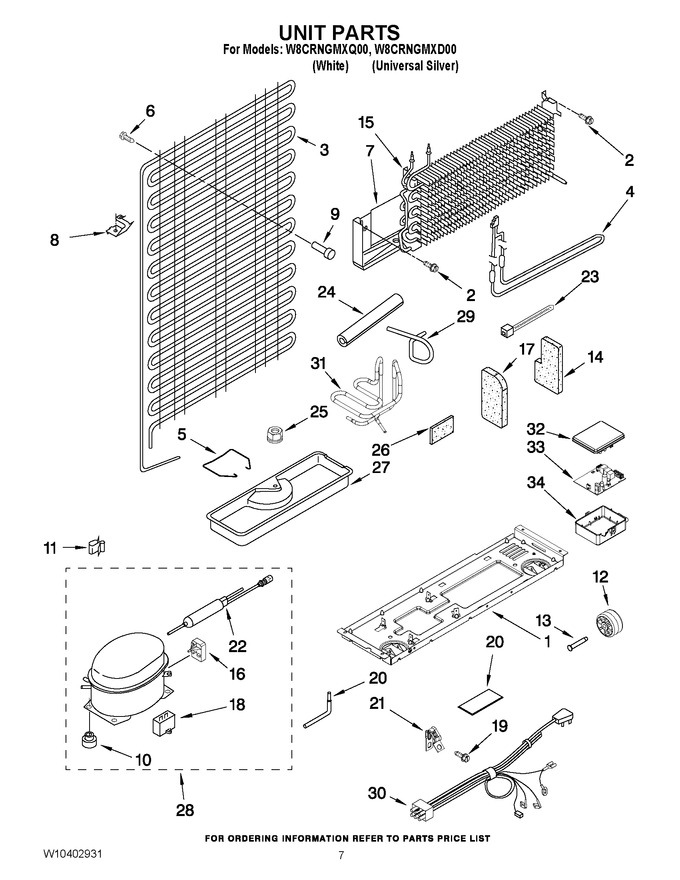

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Support Plate, Compressor |
|
$ 32.07 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 3 | WPW10219349 | Condenser (Replaces: W10219349) |
|
$ 290.70 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 5 | W10174383 | Bale Strap |
|
- | |||||
| 6 | 8533892 | Screw |
|
- | |||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | 4386951 | Clip, Condenser (Replaces: 2172892) |
|
- | |||||
| 9 | 2258452 | Spacer, Condenser |
|
- | |||||
| 10 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 8.36 | |||||
| 10 | 876811 | Grommet (service) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 11 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 12 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 13 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 7.55 | |||||
| 14 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 15 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 333.22 | ||||
| 16 | W10892065 | Start-device, Combination (start Relay And Overload) (production) (Replaces: W10330832) |
|
$ 185.18 | |||||
| 16 | WPW10194431 | Start Device, Combination (start Relay And Overload) (service) (Replaces: W10194431) |
|
Immediately | $ 86.85 | ||||
| 17 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 18 | WPW10662129 | Capacitator (service) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 19 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 20 | W10205260 | Tube, Process |
|
- | |||||
| 21 | 549193 | Clamp, Cord |
|
$ 14.06 | |||||
| 22 | W10843121 | Drier (production) (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 22 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 23 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 8.30 | |||||
| 24 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 25 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 26 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 27 | W10174378 | Evaporator Tray |
|
$ 156.50 | |||||
| 28 | W10233960 | Compressor (includes Items 10, 16, 18 & 22) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10187125) |
|
Immediately | $ 539.34 | ||||
| 29 | W10245110 | Extension, Tube-heat |
|
- | |||||
| 30 | W10238868 | Wire Assy. Unit |
|
- | |||||
| 31 | W10278445 | Tube, Discharge (incl. Pre Cooler) |
|
- | |||||
| 32 | W10133000 | Box Cover |
|
$ 46.00 | |||||
| 33 | W10260816 | Elec. Control |
|
- | |||||
| 34 | 2255623 | Control Box |
|
$ 51.40 | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (r134a) |
|
- |
