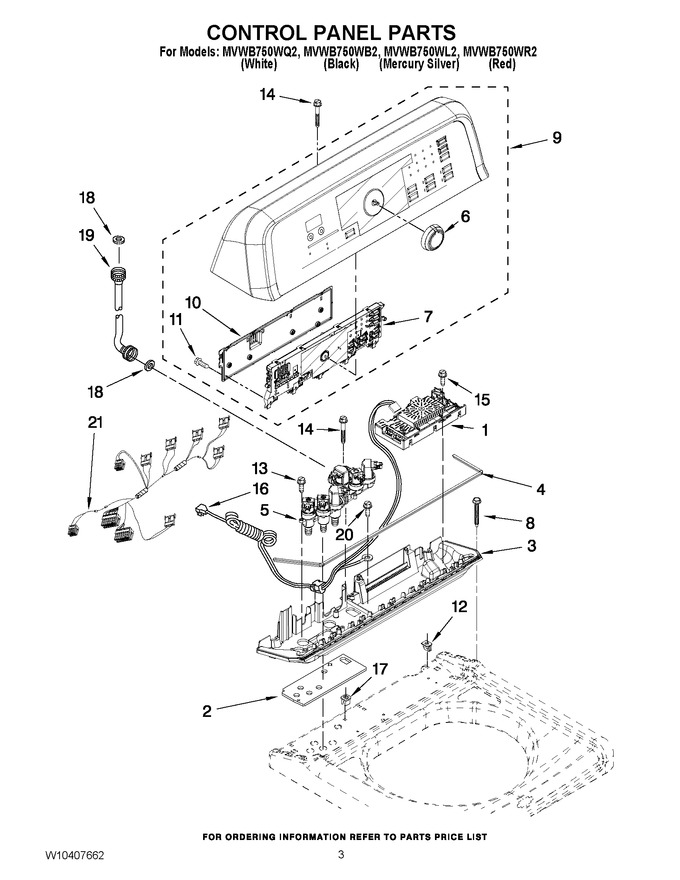

02 - Control Panel Parts
03 - Motor, Basket And Tub Parts
04 - Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10372200 | Control Unit Assembly, Machine & Motor |
|
$ 273.34 | |||||
| 2 | W10141695 | Gasket, Valve Tray |
|
$ 36.82 | |||||
| 3 | W10110213 | Tray Assembly, Console (includes Items 2 & 4) (white) |
|
$ 22.60 | |||||
| 3 | W10110304 | Tray Assembly, Console (includes Items 2 & 4) (black) |
|
- | |||||
| 3 | W10110846 | Tray Assembly, Console (includes Items 2 & 4) (grey) |
|
- | |||||
| 4 | W10141693 | Gasket, Console/tray |
|
- | |||||
| 5 | W10853723 | Valve, Log Assembly (includes Upper Wiring Harness) (Replaces: W10326913) |
|
Immediately | $ 121.66 | ||||
| 6 | WPW10051126 | Knob, Control (Replaces: W10051126) |
|
$ 51.21 | |||||
| 7 | WPW10338068 | User Interface (Replaces: W10338068) |
|
Immediately | $ 372.05 | ||||
| 8 | W10004990 | Screw, 6-20 X 1.2 |
|
- | |||||
| 9 | W10385603 | Console (red) |
|
- | |||||
| 9 | WPW10385602 | Console (white) (Replaces: W10385601) |
|
$ 499.58 | |||||
| 9 | W10385604 | Console (black) |
|
- | |||||
| 9 | WPW10385602 | Console (mercury Silver) (Replaces: W10385602) |
|
$ 499.58 | |||||
| 10 | W10051124 | Cover, Rear- User Interface |
|
$ 251.11 | |||||
| 11 | WP4449745 | Screw, 6-19 X 1/2 (Replaces: W10003770) |
|
$ 7.49 | |||||
| 12 | W10022060 | Nut, Push-in |
|
- | |||||
| 13 | WPW10052600 | Screw, 8-18 X 3/4 (Replaces: W10052600) |
|
$ 6.95 | |||||
| 14 | 8565324 | Screw, 10-16 X 1.75 |
|
$ 13.38 | |||||
| 15 | WP8281136 | Screw, 8-18 X 3/4 (Replaces: 8281136) |
|
$ 6.95 | |||||
| 16 | 3407203 | Cord Assembly, Power |
|
$ 59.22 | |||||
| 17 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 18 | WP16123 | Washer, Water Inlet Hose (1-1/16 X 5/8) (Replaces: W10242307) |
|
$ 7.70 | |||||
| 19 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 24.09 | ||||
| 19 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 20 | WP3351614 | Screw, Power Cord Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 21 | WPW10328039 | Harness, Upper (Replaces: W10328039) |
|
$ 167.56 |
