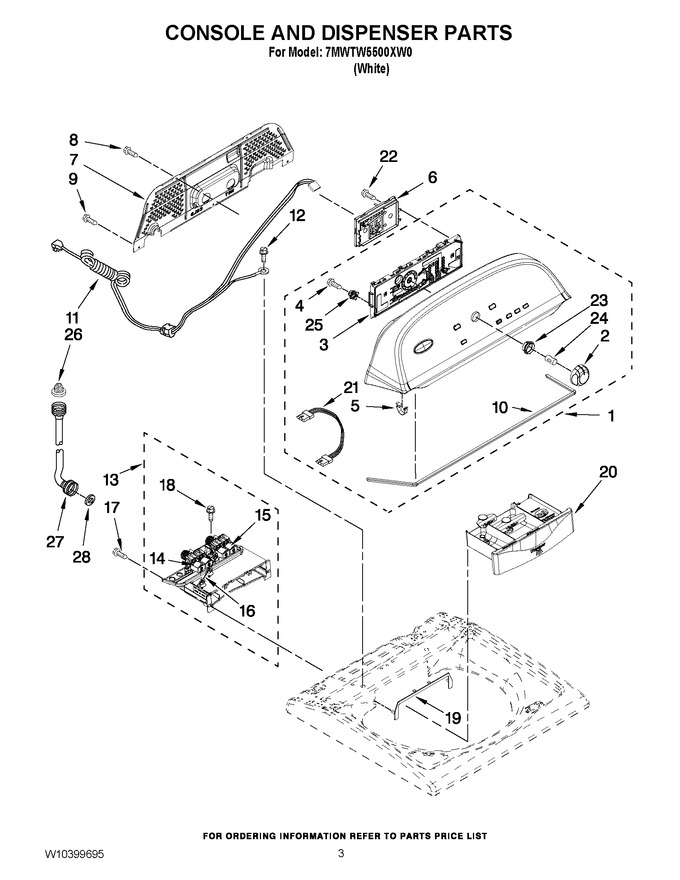

02 - Console And Dispenser Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10329777 | Console |
|
- | |||||
| 2 | WPW10251392 | Knob, Control (includes Item 24) (Replaces: W10251392) |
|
$ 56.71 | |||||
| 3 | W10269602 | User Interface |
|
$ 240.19 | |||||
| 4 | W10853898 | Screw, 8-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10392998 | Control Unit Assembly, Machine & Motor |
|
$ 488.01 | |||||
| 7 | W10420984 | Panel, Console Rear Cover (Replaces: W10269597) |
|
$ 328.41 | |||||
| 8 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 9 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 10 | W10280079 | Seal, Console |
|
- | |||||
| 11 | WPW10525195 | Cord, Power (Replaces: W10266797) |
|
$ 137.07 | |||||
| 12 | W10846509 | Screw, Power Cord Ground (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 13 | W11158805 | Housing Assembly - Dispenser (Replaces: W10240963) |
|
Immediately | $ 363.25 | ||||
| 14 | W11168740 | Valve, Cold Water Inlet (Replaces: W10240949) |
|
Immediately | $ 163.15 | ||||
| 15 | W11168743 | Valve, Hot Water Inlet (Replaces: W10240948) |
|
Immediately | $ 112.07 | ||||
| 16 | W10240967 | Harness, Valve |
|
$ 170.51 | |||||
| 17 | W11700520 | Screw, Dispenser Housing Mounting (Replaces: 3400061) |
|
$ 13.60 | |||||
| 18 | WPW10109200 | Screw, Inlet Valve Mounting (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 19 | W10240946 | Bezel, Dispenser |
|
$ 23.60 | |||||
| 20 | WPW10658443 | Drawer, Dispenser Assembly (Replaces: W10240958) |
|
$ 109.43 | |||||
| 21 | W10285493 | Harness, User Interface |
|
$ 100.67 | |||||
| 22 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 23 | W10325119 | Spacer, Knob |
|
- | |||||
| 24 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 25 | W10274524 | Tensioner, Facia |
|
- | |||||
| 26 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 9.23 | ||||
| 27 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 27 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10196191) |
|
Immediately | $ 24.09 | ||||
| 28 | WP16123 | Washer, Water Inlet Hose (Replaces: W10242307) |
|
$ 7.70 |
