01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)

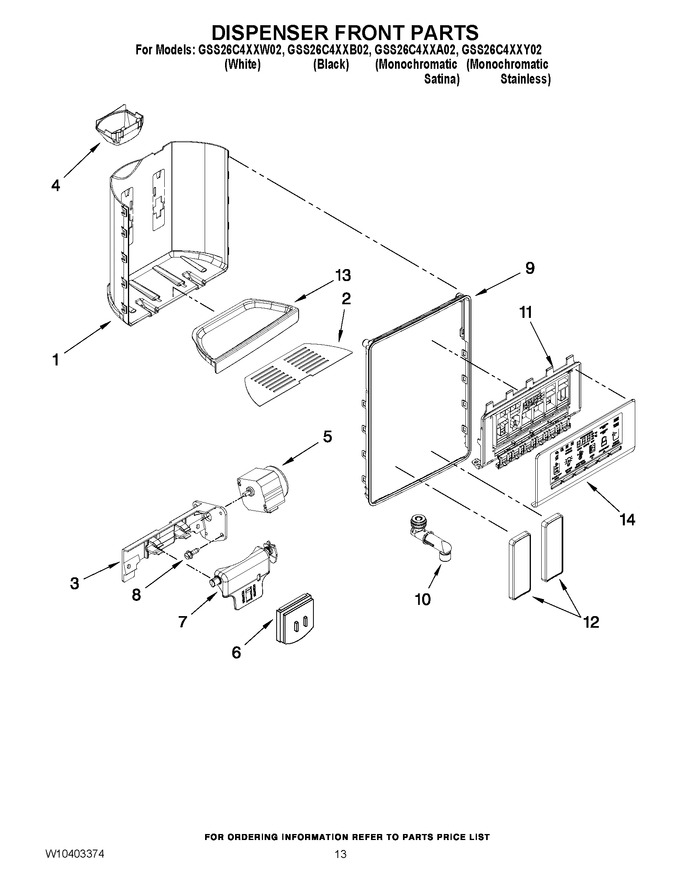

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276209		Grate, Drip Tray   (Replaces: W10276209)				$ 81.55
3	W10174827		Bracket, Ice Door				$ 76.42
4	W10499850		Chute, Door   (Replaces: W10174808)				$ 104.67
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W10346235		Door, Ice   (Replaces: W10174811)				$ 170.32
7	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 104.67
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10448931		Trim Ring (chromium Frost)   (Replaces: W10254252)		Appelez-nous	-
9	W10276265		Trim Ring (white)				$ 63.74
10	WP2305235		Spigot   (Replaces: 2305235)				$ 147.07
11	WPW10372210		Electronic Control Assy   (Replaces: W10254278)				$ 305.83
12	WPW10370594		Pad, Ice & Water (midnight Grey)   (Replaces: W10290362)				$ 310.61
12	WPW10370592		Pad, Ice & Water (black)   (Replaces: W10238111)				$ 322.90
12	WPW10370593		Pad, Ice & Water (white)   (Replaces: W10290361)				$ 311.61
13	W10254258		Tray, Housing (white)				$ 99.03
13	W10276225		Tray, Housing (satina)				$ 74.06
13	W10254259		Tray, Housing (black)				$ 71.51
14	W10254266		Front Cover (silver)				$ 121.64
14	W10276231		Front Cover (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
