SELECT A DIAGRAM

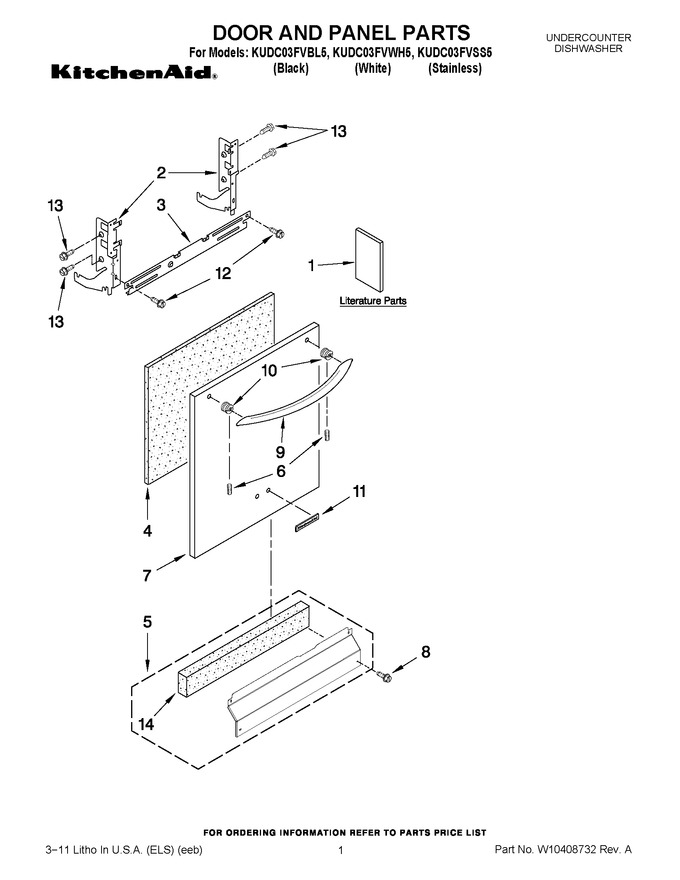

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10311171		Energy Guide		Appelez-nous	-
1	W10300233		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10300234		Guide, Use & Care (spanish)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
5	W10827632		Access Panel (white)   (Replaces: W10369026)			Immediately	$ 163.70
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	WP8534008		Screw   (Replaces: 8534008)				$ 9.37
7	W10078007		Panel, Front (includes Items 4, 10 & 11) (black)				$ 175.19
7	W10137623		Panel, Front (includes Items 4, 10 & 11) (stainless)				$ 242.05
7	W10078008		Panel, Front (includes Items 4, 10 & 11) (white)				$ 166.18
8	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
8	WPW10503549		Fastener (white)   (Replaces: W10331793)			Immediately	$ 7.77
9	W10257147		Handle (includes Item 6) (white)				$ 42.68
9	W10257146		Handle (includes Item 6) (black)				$ 42.06
9	W10257145		Handle (includes Item 6) (stainless)				$ 55.36
10	WP8564951		Stud, Mounting   (Replaces: 8564951)			Immediately	$ 19.33
11	WPW10243392		Nameplate (black)   (Replaces: W10243392)				$ 73.70
11	WPW10243393		Nameplate (white)   (Replaces: W10243393)				$ 69.98
11	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 58.31
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
14	W10831329		Insulation, Access Panel   (Replaces: W10073540)			Immediately	$ 43.30

    View Diagram in Separate Window       Print Part List
