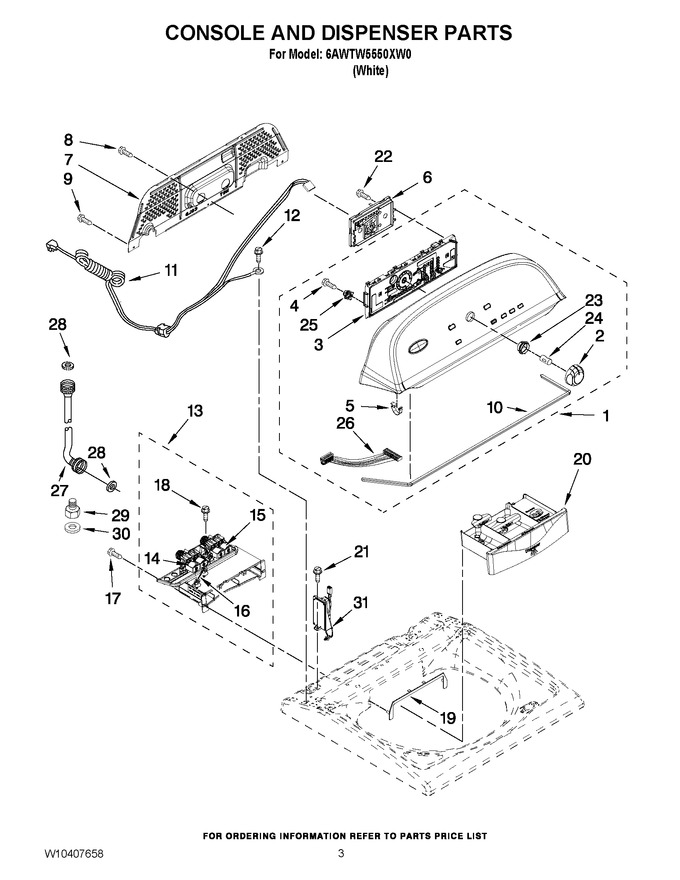

02 - Console And Dispenser Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10331123 | Console |
|
- | |||||
| 2 | WPW10251392 | Knob, Control (includes Item 24) (Replaces: W10251392) |
|
$ 59.55 | |||||
| 3 | WPW10362632 | User Interface (Replaces: W10362632) |
|
$ 240.21 | |||||
| 4 | W10853898 | Screw, 8-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10445404 | Control Unit Assembly, Machine & Motor (Replaces: W10365813) |
|
$ 342.47 | |||||
| 7 | W10420984 | Panel, Console Rear Cover (Replaces: W10269597) |
|
$ 344.83 | |||||
| 8 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 9 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 10 | W10280079 | Seal, Console |
|
- | |||||
| 11 | W10332929 | Cord, Power |
|
- | |||||
| 12 | W10846509 | Screw, Power Cord Ground (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W10601450 | Housing Assembly - Dispenser (Replaces: W10287482) |
|
- | |||||
| 14 | WPW10240976 | Valve, Cold Water Inlet (Replaces: W10240976) |
|
$ 186.23 | |||||
| 15 | WPW10240975 | Valve, Hot Water Inlet (Replaces: W10240975) |
|
$ 162.07 | |||||
| 16 | W10368547 | Harness, Valve |
|
- | |||||
| 17 | W11700520 | Screw, Dispenser Housing Mounting (Replaces: 3400061) |
|
$ 14.28 | |||||
| 18 | WPW10109200 | Screw, Inlet Valve Mounting (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 19 | W10240946 | Bezel, Dispenser |
|
$ 23.60 | |||||
| 20 | WPW10658443 | Drawer, Dispenser Assembly (Replaces: W10240958) |
|
$ 114.90 | |||||
| 21 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 22 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 23 | W10325119 | Spacer, Knob |
|
- | |||||
| 24 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 25 | W10274524 | Tensioner, Facia |
|
- | |||||
| 26 | W10285493 | Harness, User Interface |
|
$ 105.70 | |||||
| 27 | WPW10615831 | Hose, Water Inlet (hot Water) (Replaces: 3949382) |
|
$ 103.65 | |||||
| 27 | WPW10615809 | Hose, Water Inlet (cold Water) (Replaces: 3949383) |
|
$ 104.71 | |||||
| 28 | WP16123 | Washer, Water Inlet Hose (Replaces: W10242307) |
|
$ 8.16 | |||||
| 29 | WP3357397 | Adapter, Water Inlet Hose (Replaces: 3357397) |
|
$ 93.71 | |||||
| 30 | WP3357450 | Washer, Inlet Hose Adapter (Replaces: 3357450) |
|
$ 11.56 | |||||
| 31 | W10449061 | Filter, Interference (Replaces: W10386510) |
|
- |
