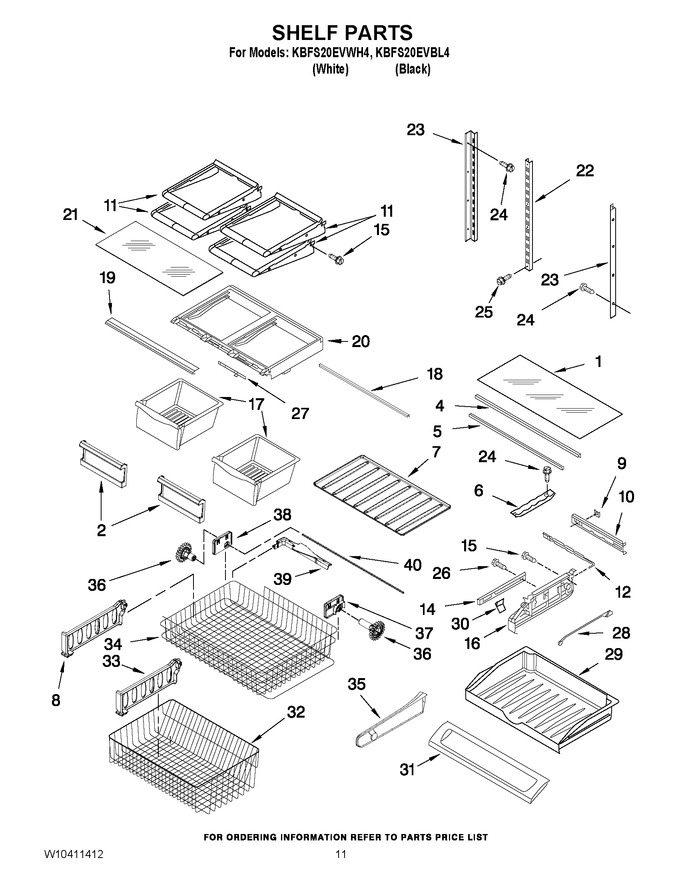

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11125512 | Glass, Pantry (Replaces: 12204829) |
|
Immediately | $ 241.01 | ||||
| 2 | 12909404SP | Frame, Pantry |
|
$ 29.86 | |||||
| 4 | W11812285 | Support, Pantry (Replaces: 12655902SP) |
|
$ 50.79 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WH) |
|
$ 103.20 | |||||
| 6 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 7 | WP12727304 | Tray-lower Basket (Replaces: 12727304) |
|
$ 113.81 | |||||
| 8 | W10241046 | Divider, Upper Basket |
|
Immediately | $ 27.80 | ||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 21.04 | |||||
| 10 | 12656202 | Housing, Control |
|
$ 141.75 | |||||
| 11 | WP12463911 | Shelf, Glide (4) (Replaces: 12463911) |
|
$ 294.55 | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 12655402) |
|
Immediately | $ 74.75 | ||||
| 14 | WPW10235370 | Glide, Drawer (2) (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 16 | WP12656105 | Track, Pantry (left) (Replaces: 12656105) |
|
Immediately | $ 55.63 | ||||
| 16 | WP12656018 | Track, Pantry (right) (Replaces: 12656021) |
|
Immediately | $ 58.87 | ||||
| 17 | WP67002659 | Pan, Crisper (2) (Replaces: 12531105SP) |
|
Immediately | $ 147.67 | ||||
| 18 | WP12227304WD | Support, Crisper Cover (Replaces: 12227304WD) |
|
$ 103.51 | |||||
| 19 | WPW10231486 | Trim, Crisper (Replaces: W10231486) |
|
$ 94.41 | |||||
| 20 | WP67006185 | Frame, Crisper (Replaces: 12531202SP) |
|
$ 216.05 | |||||
| 21 | WP67006655 | Glass, Crisper Cover (Replaces: 12204821) |
|
Immediately | $ 228.45 | ||||
| 22 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 23 | W10251971 | Ladder, L/r Side |
|
$ 56.64 | |||||
| 24 | 67006425 | Screw (6) (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 25 | W10215666 | Screw (2) |
|
$ 9.08 | |||||
| 26 | WP67006415 | Screw (4) (Replaces: 12990512) |
|
$ 7.80 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 28 | 67003794 | Bar, Temperature Control (Replaces: 12655303) |
|
$ 13.16 | |||||
| 29 | W11490183 | Drawer, Pantry (Replaces: 12655702) |
|
$ 137.42 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 12655204V) |
|
$ 29.18 | |||||
| 31 | WP67005930 | Door, Pantry Drawer (Replaces: 12656817) |
|
Immediately | $ 81.56 | ||||
| 32 | W10503185 | Basket, Freezern (lower) (Replaces: W10150040) |
|
$ 149.50 | |||||
| 33 | W10150061 | Divider, Lower Basket |
|
$ 85.08 | |||||
| 34 | W10348245 | Basket, Freezer (upper) (Replaces: W10188805) |
|
$ 291.33 | |||||
| 35 | WP67002321 | Divider, Pantry Drawer (Replaces: 12709301) |
|
$ 32.18 | |||||
| 36 | WPW10474716 | Gear (right) (Replaces: W10158749) |
|
Immediately | $ 30.88 | ||||
| 36 | WPW10474715 | Gear (left) (Replaces: W10146446) |
|
Immediately | $ 31.20 | ||||
| 37 | W10348260 | Mount, Gear Rh |
|
$ 85.62 | |||||
| 38 | W10348259 | Mount, Gear Lh |
|
$ 85.59 | |||||
| 39 | W10149389 | Lift, Bail Arm |
|
$ 88.25 | |||||
| 40 | W11173556 | Shaft-rack (Replaces: 12812904WD) |
|
$ 30.84 |
