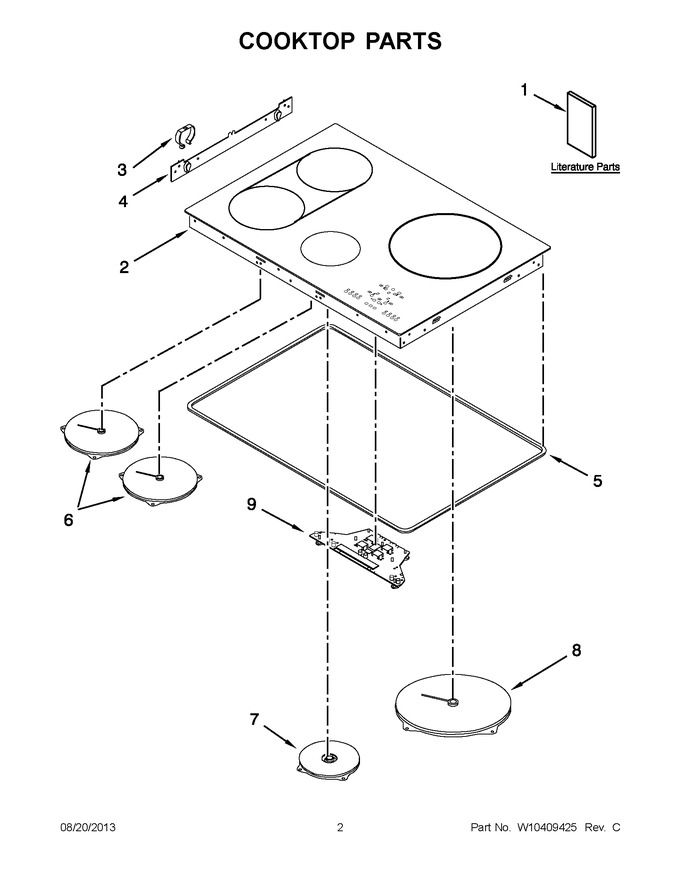

02 - Cooktop Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10356035 | Installation Instructions |
|
- | |||||
| 1 | W10408874 | Tech Sheet |
|
- | |||||
| 2 | W10396546 | Cooktop, Glass (black) |
|
$ 635.10 | |||||
| 2 | WPW10396621 | Cooktop, Glass (stainless) (Replaces: W10396621) |
|
$ 955.90 | |||||
| 3 | W10810497 | Spring, Cooktop (Replaces: W10328375) |
|
Immediately | $ 22.33 | ||||
| 4 | WPW10328377 | Bracket, Support (Replaces: W10328377) |
|
Immediately | $ 53.05 | ||||
| 5 | WPW10237005 | Gasket, Cooktop (Replaces: W10237005) |
|
Immediately | $ 163.56 | ||||
| 6 | WPW10396548 | Coil, Element ( Left Front, Left Rear ) (7 Inch ( 17.8cm )) (Replaces: W10396548) |
|
Immediately | $ 394.39 | ||||
| 7 | W11672508 | Coil, Element ( Center Front ) (6 Inch ( 15.2 Cm )) (Replaces: W10396547) |
|
$ 257.23 | |||||
| 8 | WPW10396549 | Coil, Element ( Right Rear ) (10 Inch ( 25.4 Cm )) (Replaces: W10396549) |
|
Immediately | $ 290.51 | ||||
| 9 | WPW10396615 | User Interface ? Display Board (Replaces: W10396615) |
|
Immediately | $ 733.52 |
