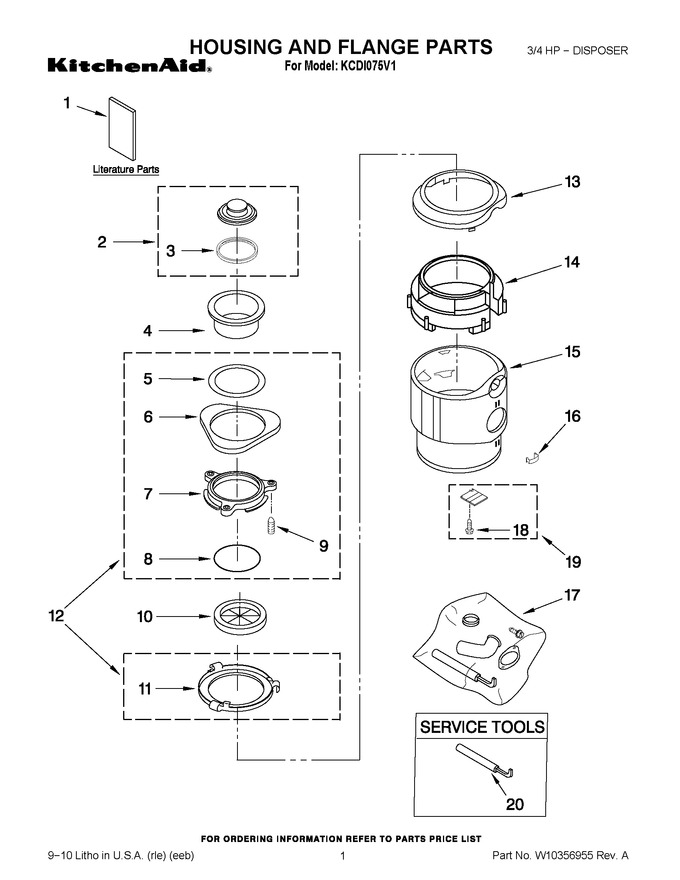

01 - Housing And Flange Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10222147		Guide, Use & Care		Appelez-nous	-
2	4211577		Stopper Assembly				$ 53.31
3	4211333		Gasket, Stopper				$ 30.86
4	W10171101		Flange, Sink		Appelez-nous	-
5	4211606		Gasket, Fiber				$ 22.21
6	W10171102		Ring, Backup		Appelez-nous	-
7	4211304		Ring, Mounting				$ 137.21
8	4211306		Ring, Snap				$ 10.56
9	W10352985		Screw		Appelez-nous	-
10	WP4211334		Gasket, Mounting   (Replaces: 4211334)				$ 35.56
11	4211308		Flange, Body		Appelez-nous	-
12	W10179031A		Mounting Assembly   (Replaces: W10222137)				$ 86.00
13	W10171106		Cap, Trim Shell		Appelez-nous	-
14	W10222139		Insulation		Appelez-nous	-
15	W10222140		Trim Shell Assy		Appelez-nous	-
16	8174342		Clip		Appelez-nous	-
17	W10222142		Installation Kit		Appelez-nous	-
18	W10356662		Screw		Appelez-nous	-
19	8174315		Terminal Cover		Appelez-nous	-
20	WP8174310		Wrench   (Replaces: 8174310)				$ 22.35
