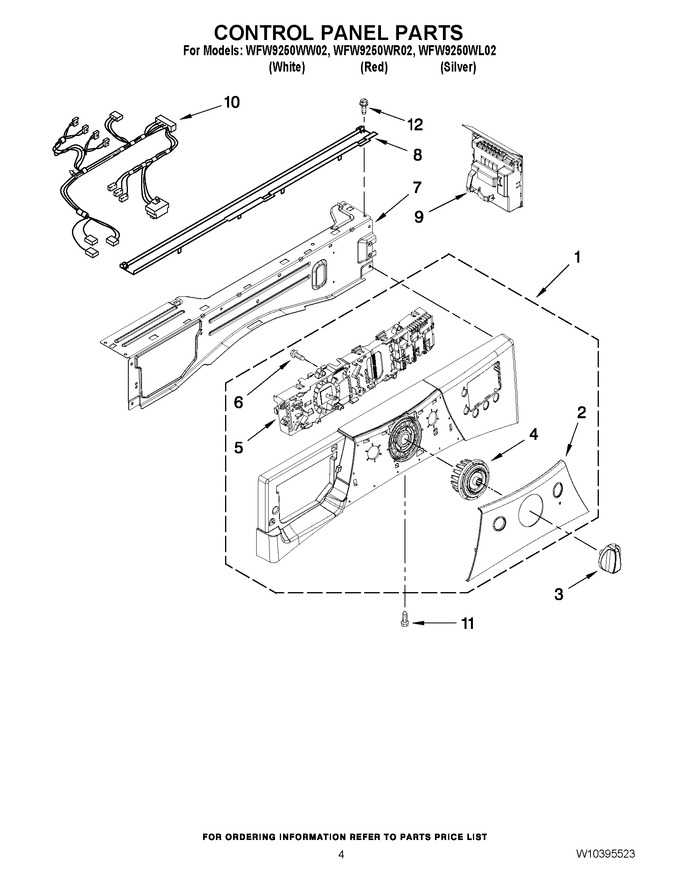

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10253387		Console (red)   (Replaces: W10253387)				$ 617.78
1	WPW10325314		Console (silver)   (Replaces: W10325314)				$ 509.76
1	W10325313		Console (white)				$ 419.18
2	W10272152		Cover, Center (red)		Appelez-nous	-
2	W10272146		Cover, Center (silver)		Appelez-nous	-
2	W10237305		Cover, Center (white)		Appelez-nous	-
3	WPW10215781		Knob, Control (white)   (Replaces: W10215781)				$ 59.12
3	WPW10247262		Knob, Control (silver)   (Replaces: W10247262)				$ 56.36
4	W10237301		Light Guide, Cycle		Appelez-nous	-
5	W10212769		User Interface		Appelez-nous	-
6	W10006580		Screw, M3-1.12 X12		Appelez-nous	-
7	W10846488		Brace, Top Front   (Replaces: W10240776)				$ 92.31
8	8540839		Channel, Water				$ 27.81
9	WPW10525365		Microcomputer, Machine Control   (Replaces: W10315855)				$ 305.29
10	W10323100		Harness, Main Wiring				$ 363.06
11	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
12	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 11.49

    View Diagram in Separate Window       Print Part List
