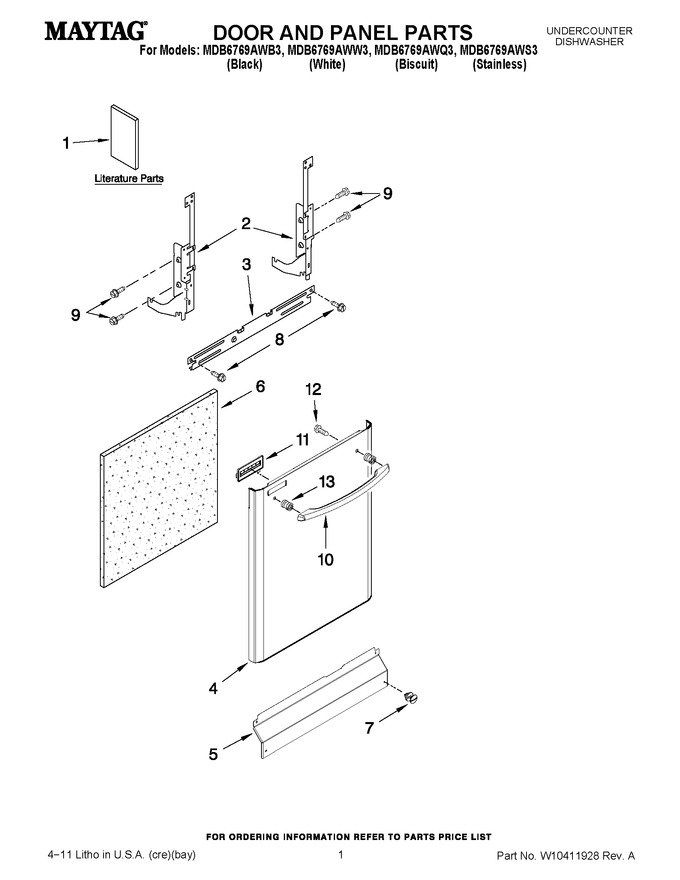

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10240117 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 1 | W10290309 | Instructions, Installation |
|
- | |||||
| 1 | W10398587 | Energy Guide |
|
- | |||||
| 1 | W10240116 | Guide, Use & Care (english/french) |
|
- | |||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 83.93 | ||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 71.77 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10245557 | Panel Front (stainless) |
|
- | |||||
| 4 | W10245555 | Panel Front (white) |
|
- | |||||
| 4 | W10245554 | Panel Front (black) |
|
- | |||||
| 4 | W10245556 | Panel Front (biscuit) |
|
- | |||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10369024) |
|
Immediately | $ 195.64 | ||||
| 5 | W10827632 | Access Panel (white) (Replaces: W10369026) |
|
Immediately | $ 163.70 | ||||
| 5 | W10369028 | Access Panel (biscuit) |
|
$ 170.73 | |||||
| 6 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 7 | WPW10503550 | Screw (biscuit) (Replaces: W10331794) |
|
$ 29.00 | |||||
| 7 | WPW10503549 | Screw (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 7 | WPW10503548 | Screw (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 10 | W10249315 | Handle (biscuit) |
|
- | |||||
| 10 | W10324627 | Handle (white) (Replaces: W10199635) |
|
$ 182.84 | |||||
| 10 | W10199637 | Handle (black) |
|
$ 75.14 | |||||
| 10 | W10199639 | Handle (chrome) |
|
$ 101.41 | |||||
| 11 | W10201653 | Vent Assy |
|
- | |||||
| 12 | W10123421 | Screw |
|
$ 12.83 | |||||
| 13 | WP8564951 | Stud (Replaces: 8564951) |
|
Immediately | $ 19.33 |
