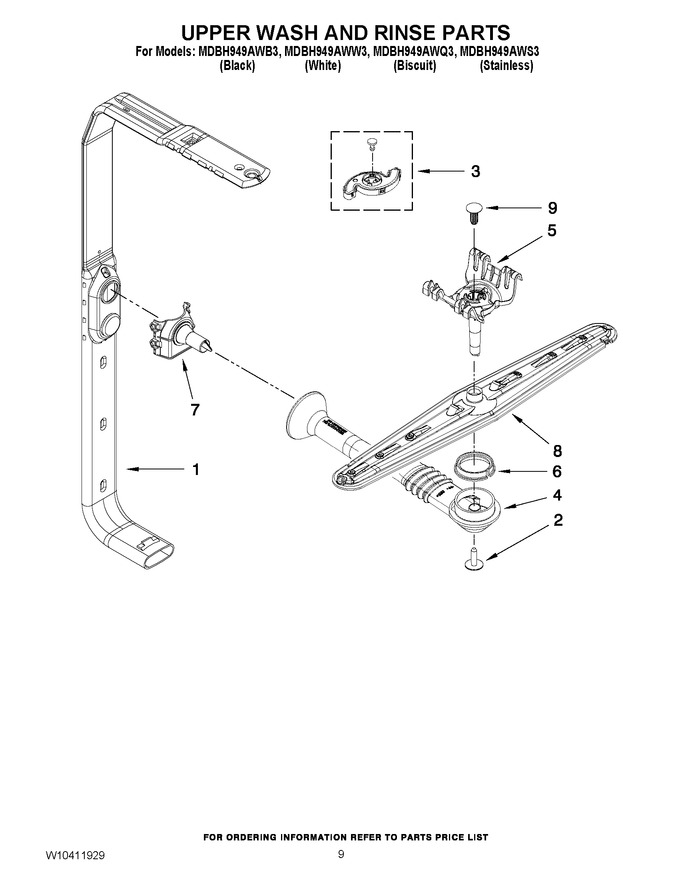

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8579224 | Feed Tube Silverware Zone (also Inc. No.3) |
|
$ 73.36 | |||||
| 2 | WPW10349488 | Screw (Replaces: W10349488) |
|
$ 8.97 | |||||
| 3 | 8193983 | Spinner, 3rd Level Wash (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | W10199810 | Manifold |
|
$ 71.70 | |||||
| 5 | W10199808 | Mount, Spray Arm |
|
$ 30.79 | |||||
| 6 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 7 | 8562095 | Nozzle-feed |
|
$ 50.90 | |||||
| 8 | WPW10082841 | Sprayarm (Replaces: W10082841) |
|
Immediately | $ 82.56 | ||||
| 9 | WPW10118464 | Retainer, Push-in (Replaces: W10118464) |
|
$ 11.18 |
