SELECT A DIAGRAM

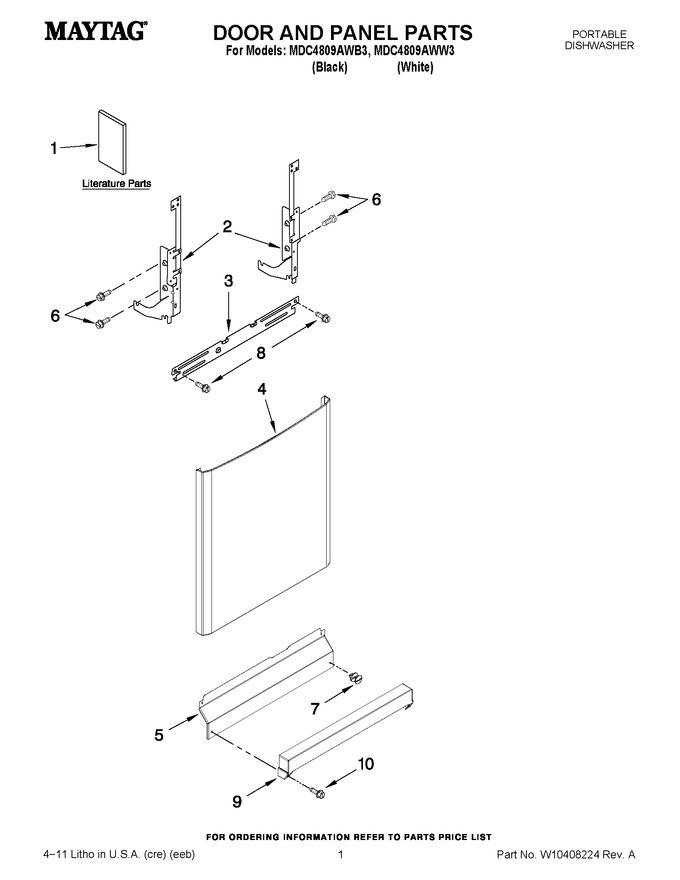

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142800		Tech Sheet		Appelez-nous	-
1	W10255025		Instructions, Installation		Appelez-nous	-
1	W10398592		Energy Guide		Appelez-nous	-
1	W10240116		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10240117		Guide, Use & Care (spanish)		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 83.93
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 71.77
3	W10331928		Stiffener, Door		Appelez-nous	-
4	W10240060		Panel Front (black)		Appelez-nous	-
4	W10240061		Panel Front (white)		Appelez-nous	-
5	W10272849		Access Panel				$ 9.12
6	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
7	WPW10503548		Screw   (Replaces: W10331789)			Immediately	$ 30.39
8	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
9	W11676533		Shroud, Caster (black)   (Replaces: W10270163)				$ 64.24
9	W10270155		Shroud, Caster (white)				$ 147.38
10	W10001330		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
