01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)

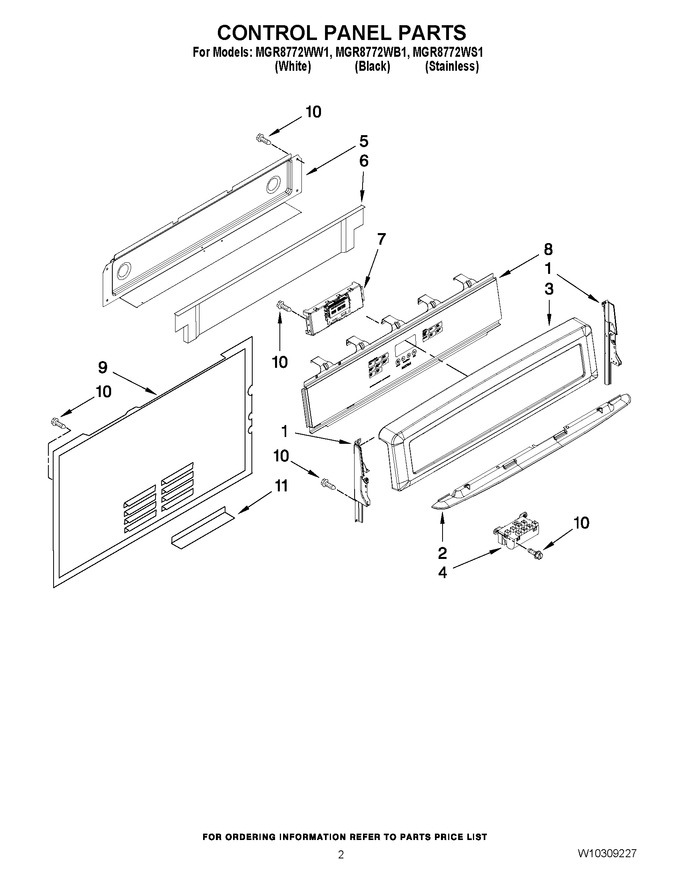

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163967		Endcap, Left Hand (white)				$ 32.00
1	W10163970		Endcap, Right Hand (black)				$ 34.76
1	W10163968		Endcap, Right Hand (white)		Appelez-nous	-
1	W10163969		Endcap, Left Hand (black)				$ 34.61
2	3604F382-81		Heat Shield, Visor (white)				$ 32.49
2	3604F382-09		Heat Shield,visor (black)				$ 50.83
3	W10097270		Console (white)				$ 118.50
3	W10097280		Console (black)				$ 119.25
3	W10097310		Console (stainless)				$ 116.84
4	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 339.00
5	W10243038		Cover, Upper				$ 49.02
6	3604F381-19		Shield, Vent				$ 31.31
7	W10157251		Control				$ 328.35
8	W10225530		Overlay, Active (stainless)		Appelez-nous	-
8	W10207500		Overlay, Active (white)		Appelez-nous	-
8	W10207501		Overlay, Active (black)		Appelez-nous	-
9	W10243047		Cover, Main Wire		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
11	8007P047-60		Bushing, Wire Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
